Complete description of the selected organ

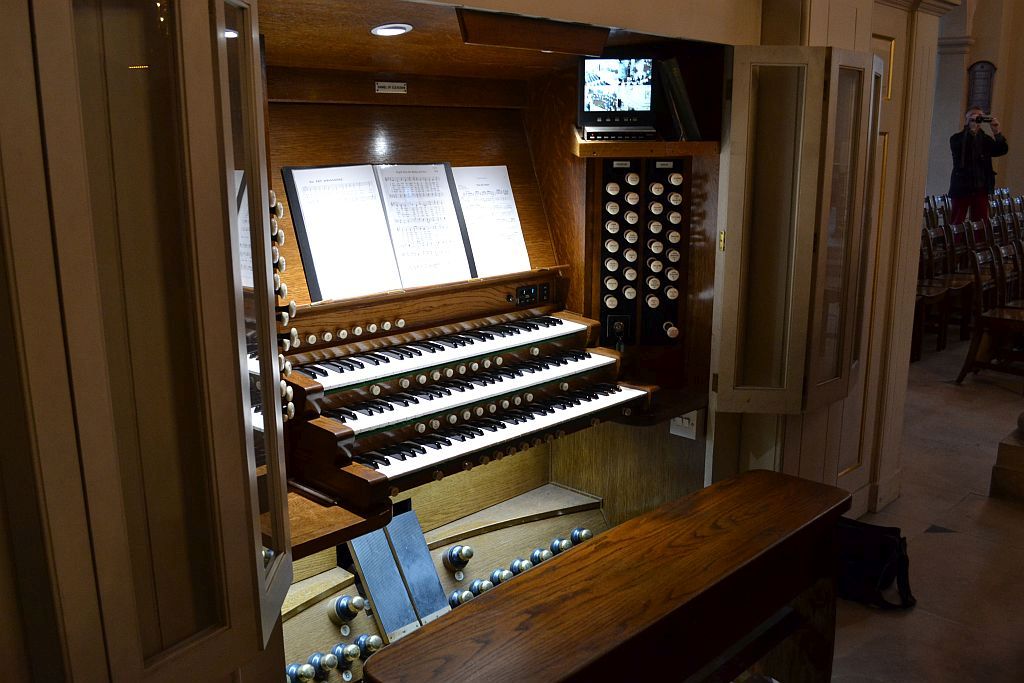

Photo: Jan Schuring
Brentwood, United Kingdom (Essex) - Roman Catholic Cathedral of Saint Mary and Saint Helen
Address: Ingrave Road, CM15 8AT, Brentwood
Website: http://cathedral-brentwood.org/
Description nr.: 2033092.
Built by: Alfred Hunter & Son (1881)
Short list of all locations the organ has been
Technical data
Specification
Great Organ: Double Open Diapason 16', Open Diapason No.1 8', Open Diapason No.2 8', Clarabella 8', Dulciana 8', Principal 4', Harmonic Flute 4', Fifteenth 2', Mixture 3 ranks (19.22.26), Trumpet 8', Corno di Bassetto 8', Clarion 4'.
Positive: Gedeckt 8', Principal 4', Nazard 2 2/3', Block Flute 2', Tierce 1 3/5', Sifflet 1', Sharp Mixture 3 ranks (22.26.29), Corno di Bassetto 8', Trumpet 8', Fanfare Trumpet 8' - 2010.
Swell Organ: Lieblich Bourdon 16', Geigen Principal 8', Lieblich Gedackt 8', Gamba 8', Voix Celeste 8' (TC), Geigen Principal 4', Flute 4', Fifteenth 2', Mixture 2 ranks (19.22), Contra Fagotto 16', Cornopean 8', Oboe 8', Clarion 4', Tremulant.
Pedal Organ: Acoustic Bass 32', Open Diapason 16', Violone 16', Bourdon 16', Principal 8', Bass Flute 8', Octave Flute 4', Twenty-second 2', Posaune 16', Contra Fagotto 16', Trumpet 8', Fanfare Trumpet 8' - 2010; from Positive, Clarion 4'.
Couplers: Swell to Great, Positive to Great, Swell to Positive, Great to Pedal, Positive to Pedal, Swell to Pedal, Swell Suboctave, Swell Octave, Swell Unison Off, Great and Pedal Combinations Coupled.
Accessories: 7 adjustable thumb pistons to Great, 6 adjustable thumb pistons to Positive 6', 7 adjustable thumb pistons to Swell, 7 adjustable toe pistons to Pedal, 8 adjustable General thumb pistons, General Cancel thumb piston 1'.

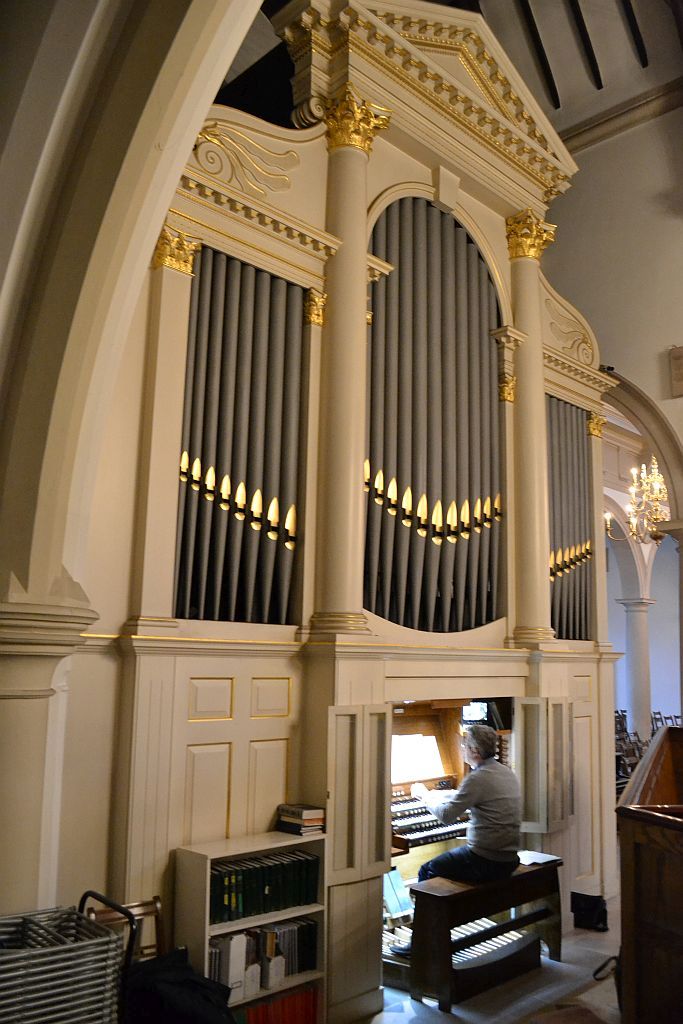

Photo: Jan Schuring
Brentwood, United Kingdom (Essex) - Roman Catholic Cathedral of Saint Mary and Saint Helen
Address: Ingrave Road, CM15 8AT, Brentwood
Website: http://cathedral-brentwood.org/
Description nr.: 2033092.
Built by: Alfred Hunter & Son (1881)
| Year | Builder | Opus | Activity | 1881 | Alfred Hunter & Son | new organ | 1931 | Norman & Beard Hill | restoration | 1991 | Percy Daniel & Co. | rebuild | 2010 | Percy Daniel & Co. | maintenance/reparations |
- In 1881 bouwde Alfred Hunter een orgel voor de kerk Saint Mary-at-the-Walls in Colchester. In 1931 werkte de firma Hill, Norrman & Beard aan het orgel. Zij wijzigden de dispositie enigszins (Twelfth en Mixture van Great werden vervangen door labiaalstemmen). Enkele jaren later werd het Choir Organ in een zwelkast geplaatst. In 1977 werd deze kerk gesloten en verbouwd tot kunstencentrum. Nog enkele jaren was het orgel in gebruik voor concerten. Bij een verbouwing van het interieur besloot men later toch het orgel te verkopen. Het instrument werd geschonken aan Brentwood Cathedral.
- Na de bouw van de nieuwe kathedraal plaatste de firma Percy Daniels & Co. het orgel over, waarbij het ingrijpend is verbouwd en uitgebreid. De orgelkas is ontworpen door Quinlan Terry, architect van de kathedraal. In 1991 werden kerk en orgel in gebruik genomen. Rond 2010 is door de firma Daniels een revsiie uitgevoerd, waarbij enkele stemmen opnieuw zijn geïntoneerd. Ook is er een Solo Fanfare Trumpet geplaatst.
Short list of all locations the organ has been
| 1881 | Colchester | Church of Saint Mary at the Walls |
| 1991 | Brentwood | Roman Catholic Cathedral of Saint Mary and Saint Helen |
Technical data
| Number of stops per division | |
| - Great Organ | 12 |
| - Positive | 10 |
| - Swell Organ | 13 |
| - Pedal Organ | 13 (12) |
| Total number of stops | 48 (47) |
| Key action | Mechanical |
| Stop action | Electrical |
| Windchest(s) | Slider chests |
Specification
Great Organ: Double Open Diapason 16', Open Diapason No.1 8', Open Diapason No.2 8', Clarabella 8', Dulciana 8', Principal 4', Harmonic Flute 4', Fifteenth 2', Mixture 3 ranks (19.22.26), Trumpet 8', Corno di Bassetto 8', Clarion 4'.
Positive: Gedeckt 8', Principal 4', Nazard 2 2/3', Block Flute 2', Tierce 1 3/5', Sifflet 1', Sharp Mixture 3 ranks (22.26.29), Corno di Bassetto 8', Trumpet 8', Fanfare Trumpet 8' - 2010.
Swell Organ: Lieblich Bourdon 16', Geigen Principal 8', Lieblich Gedackt 8', Gamba 8', Voix Celeste 8' (TC), Geigen Principal 4', Flute 4', Fifteenth 2', Mixture 2 ranks (19.22), Contra Fagotto 16', Cornopean 8', Oboe 8', Clarion 4', Tremulant.
Pedal Organ: Acoustic Bass 32', Open Diapason 16', Violone 16', Bourdon 16', Principal 8', Bass Flute 8', Octave Flute 4', Twenty-second 2', Posaune 16', Contra Fagotto 16', Trumpet 8', Fanfare Trumpet 8' - 2010; from Positive, Clarion 4'.
Couplers: Swell to Great, Positive to Great, Swell to Positive, Great to Pedal, Positive to Pedal, Swell to Pedal, Swell Suboctave, Swell Octave, Swell Unison Off, Great and Pedal Combinations Coupled.
Accessories: 7 adjustable thumb pistons to Great, 6 adjustable thumb pistons to Positive 6', 7 adjustable thumb pistons to Swell, 7 adjustable toe pistons to Pedal, 8 adjustable General thumb pistons, General Cancel thumb piston 1'.
| Recordings |
|
 |
 |
 |
 |
 |
