Ausführliche Beschreibung der vorgewählten Orgel

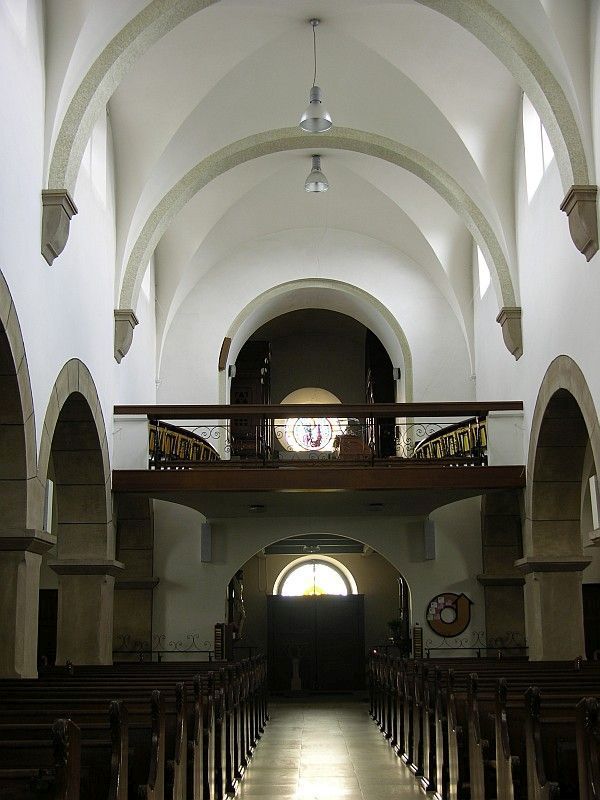

Bild: Piet Bron
Heppenbach, België (Liège) - Katholische Pfarrkirche Sankt Aegidius
Gemeinde: Amel
Region:Wallonie
Adresse: Zum Höchst, 4771, Heppenbach
Beschreibung nr.: 2012350.
Gebaut von: Klais Orgelbau (1902) - Opus 232
The organ in the parish church of Heppenbach was built in 1902 by Johannes Klais. In 1904 the instrument could be dedicated. In 1925 the instrument was re-installed in the current church building. To do so the organ case was split in two parts. The front part (with the Hauptwerk) was placed to right side (north) of the rose window, and the back part (with Positiv and Pedal) to the left side (south). The cases were rotated sideways. The console was standing in between the cases, but is later relocated in front of the organ at the right side.
Technische Daten
Disposition
Hauptwerk (C-f'''): Principal 8', Flauto 8', Octave 4', Quinte 2 2/3', Mixtur 4 fach, Trompete 8'.
Positiv (C-f'''): Gedackt 8', Viola 8', Flöte 4', Principal 2', Sesquialtera 2 fach (2 2/3') (from fis°), Tremolo.
Pedal (C-d'): Subbass 16'.
Koppeln: Hauptwerk - Positiv, Pedal - Hauptwerk, Pedal - Positiv.
Nebenregister und Spielhilfen: 3 feste Kombinationen (p - f - tutti), Piano in Pedal.
Bild: Piet Bron
Heppenbach, België (Liège) - Katholische Pfarrkirche Sankt Aegidius
Gemeinde: Amel
Region:Wallonie
Adresse: Zum Höchst, 4771, Heppenbach
Beschreibung nr.: 2012350.
Gebaut von: Klais Orgelbau (1902) - Opus 232
The organ in the parish church of Heppenbach was built in 1902 by Johannes Klais. In 1904 the instrument could be dedicated. In 1925 the instrument was re-installed in the current church building. To do so the organ case was split in two parts. The front part (with the Hauptwerk) was placed to right side (north) of the rose window, and the back part (with Positiv and Pedal) to the left side (south). The cases were rotated sideways. The console was standing in between the cases, but is later relocated in front of the organ at the right side.
Technische Daten
| Anzahl Register pro Manual | |
| - Hauptwerk | 6 |
| - Positiv | 5 |
| - Pedal | 1 |
| Gesamtzahl der Stimmen | 12 |
| Tastentraktur | Pneumatic |
| Registertraktur | Pneumatic |
| Windlade(n) | Cone chests |
Disposition
Hauptwerk (C-f'''): Principal 8', Flauto 8', Octave 4', Quinte 2 2/3', Mixtur 4 fach, Trompete 8'.
Positiv (C-f'''): Gedackt 8', Viola 8', Flöte 4', Principal 2', Sesquialtera 2 fach (2 2/3') (from fis°), Tremolo.
Pedal (C-d'): Subbass 16'.
Koppeln: Hauptwerk - Positiv, Pedal - Hauptwerk, Pedal - Positiv.
Nebenregister und Spielhilfen: 3 feste Kombinationen (p - f - tutti), Piano in Pedal.
| Literatur |
Orgues de Wallonie : Volume 7 : Province de Liège : Tome 11 - Arrondissement de Verviers / Eric Mairlot. - Namur : Ministère de la Région wallone : Direction générale de l'Aménagement du Territoire, du Logement et du Patrimoine, 1998. |
