Ausführliche Beschreibung der vorgewählten Orgel


Bild: Piet Bron

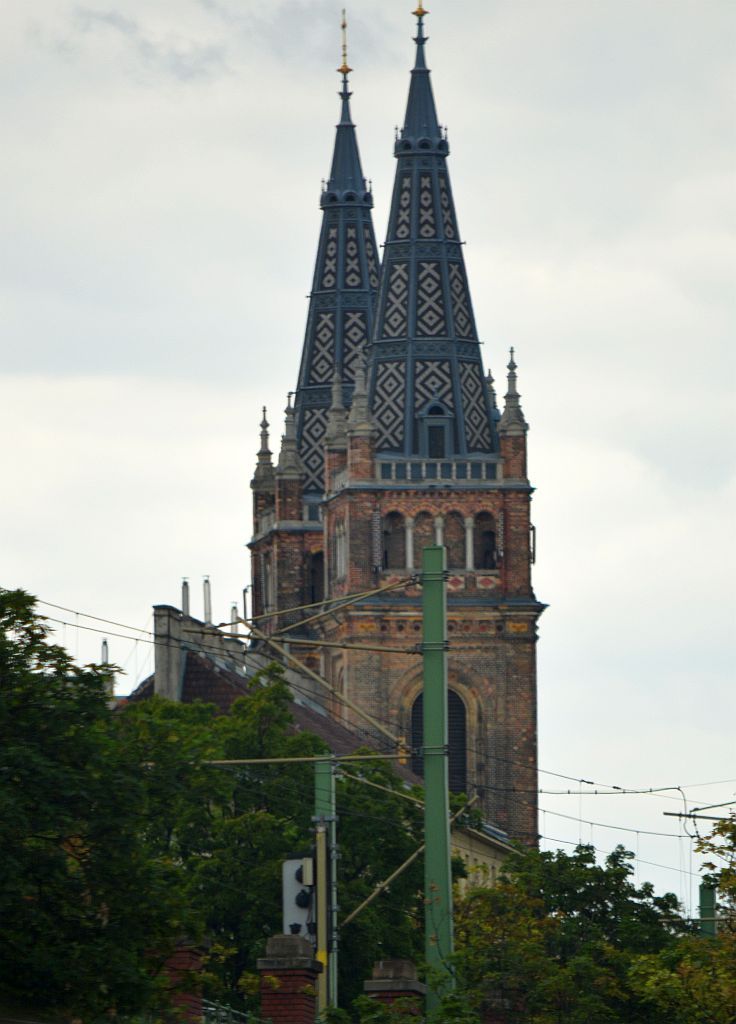

Wien, Österreich (Wien) - Katholische Pfarrkirche Breitenfeld Sankt Franziskus von Assisi (Josefstadt)

Weitergeleitet von: Innsbruck - Dom zu Sankt Jakob (1931 -2001)

Gemeinde: Wien
Adresse: Uhlplatz, 1080, Wien 8
Website: https://www.breitenfeld.info/

Beschreibung nr.: 2009481.

Gebaut von: Rieger Orgelbau (1931) - Opus 2500

Jahr	Orgelbauer	Opus	Aktivität
1931	Rieger Orgelbau	2500	Neubau
1944	Karl Reinisch's Erben		Restaurierung
1979	Heintze		Restaurierung
2001	Peter-Maria Kraus		Übersetzung

• On the advice of Karl Koch, the organist of the Domkirche in Innsbruck, the company Gebr. Rieger built a large new organ for the church in 1931, replacing the previous Franz Reinisch organ from 1892 (that was relocated to the Höttinger Pfarrkirche). The instrument consisted of a main organ and a Fernwerk, which was played from a four-manual console on the organ gallery. It was built by Rieger as opus 2500. It was inaugurated on November 17, 1931, with Karl Koch and Karl Walter playing the instrument. The organ was damaged by a bomb in 1944. Johann Pirchner restored the organ hereafter. The Fernwerk had to be largely newly built. In 1979 Heintze from Nuremberg carried out an overhaul.

• At the end of the nineties it was decided to have a new organ built. The old organ was sold to the parish church of Wien-Breitenfeld. But the Fernwerk remained behind in Innsbruck and was given its own console, so that it could be used as a choir organ. In Breitenfeld the organ was rebuilt by Peter Kraus. Due to the limited space, the technical installation had to be largely new. Windchests, console and pipework were almost entirely taken over from the Rieger organ. A special feature is that the bellows, which are installed in the tower room of the church, are remains of the first organ of the church, built in 1898 by Matthäus Mauracher & Söhne. The associated organ was lost in 1944 due to war.

• Because the Fernwerk in Innsbruck had been left behind, Kraus built a new Fernwerk in Breitenfeld in 2009-2010, which is installed as a choir organ. It also has its own console. The temperament of the new Fernwerk is Werckmeister III, while the organ is furthermore tuned to in an equal temperament. The choir organ/Fernwerk was dedicated on November 6, 2010.


Kurze Übersicht der Orte, an denen die Orgel gestanden hat

1931	Innsbruck	Dom zu Sankt Jakob
2001	Wien	Katholische Pfarrkirche Breitenfeld (Wien-Josefstadt)

Technische Daten

Anzahl Register pro Manual
- Hauptwerk	18
- Schwellwerk	14
- Unterwerk	9
- Fernwerk	10
- Pedal	15 (11)
Gesamtzahl der Stimmen	66 (62)
Tastentraktur	Electropneumatic
Registertraktur	Electropneumatic
Windlade(n)	Cone chests

Disposition
Hauptwerk (C-a'''): Principal Major 16', Bourdon 16', Principal Minor 8', Rohrgedeckt 8', Viola da Gamba 8', Gemshorn 8', Octav 4', Rohrflöte 4', Salicet 4', Nasard 2 2/3', Waldflöte 2', Terz 1 3/5', Cornett 4-6 fach (2 2/3'), Mixtur 6 fach (2'), Cymbel 3 fach (1'), Dulcian 16', Trompete 8', Clairon 4'.
Schwellwerk (C-a'''): Fugara 16', Principal 8', Tibia 8', Gamba 8', Vox Coelestis 8', Octav 4', Blockflöte 4', Violine 4', Quinte 2 2/3', Piccolo 2', Gemshornterz 1 3/5', Mixtur 4 fach (2'), Trompete Harmonique 8', Clairon Harmonique 4'.
Unterwerk (C-a'''): Holzgedeckt 8', Quintade 8', Principal 4', Holzflöte 4', Superoctav 2', Quint 1 1/3', Schwiegel 1', Mixtur 3 fach (1 1/3'), Krummhorn 8'.
Fernwerk (2010) (C-a'''):
Manual: Weitprästant 8', Hohlflöte 8', Salicional 8', Octav 4', Spitzflöte 4', Quint 2 2/3', Superoctav 2', Terz 1 3/5', Mixtur 4 fach (1 1/3').
Pedal: Subbass 16'.
Pedal (C-f'): Principalbass 16', Violon 16', Subbass 16', Bourdon 16' - transmissie van Hauptwerk, Quintbass 10 2/3', Octavbass 8', Gedeckt 8', Gamba 8' - transmissie van Schwellwerk, Choralbass 4', Nachthorn 2', Pedalmixtur 3-5 fach (1 1/3'), Sordun 32', Posaune 16', Trompete 8' - transmissie van Schwellwerk, Clairon 4' - transmissie van Schwellwerk.
Koppeln: Hauptwerk - Schwellwerk, Hauptwerk - Unterwerk, Hauptwerk - Fernwerk, Schwellwerk - Unterwerk, Pedal - Hauptwerk, Pedal - Schwellwerk, Pedal - Unterwerk, Pedal - Fernwerk, Sub- und Superoktavkoppeln.
Nebenregister und Spielhilfen: Crescendo Walze, Auto-Pedal, Zungen weg, 16' weg, Tutti A, Tutti B, Setzer mit 1000 Speicherplätzen.

Übrige dispositiondaten

Mehrere dispositionen

De dispositie luidde bij de ingebruikname in 1931: I. Manual (Hauptwerk): Prinzipal 16', Bourdon 16', Prinzipal Major 8', Viola di Gamba 8', Salicional 8', Gedeckt 8', Flute Harmonique 8', Oktave 4', Spitzflöte 4', Rohrflöte 4', Quinte 2 2/3', Superoktave 2', Terz 1 3/5', Kornett 3-6 fach, Mixtur 4 fach (2 2/3'), Cymbel 3 fach (1'), Trompete 8', Clairon 4'. II. Manual (Schwellwerk I): Lieblich Gedeckt 16', Prinzipal Minor 8', Gemshorn 8', Quintade 8', Nachthorn Gedeckt 8', Prinzipal 4', Salicett 4', Blockflöte 4', Nasard 2 2/3', Piccolo 2', Gemshornterz 1 3/5', Sifflöte 1', Mixtur 3 fach, Krummhorn 8', Geigend Regal 4', Tremolo. III. Manual (Schwellwerk II): Fugara 16', Hornprinzipal 8', Gamba 8', Vox Coelestis 8' (vanaf c), Flauto Tibia 8', Lieblich Gedeckt 8', Prestant 4', Holzflöte 4', Waldflöte 2', Terz 1 3/5', Superquint 1 1/3', Schwiegel 1', Plein Jeu 6 fach (2 2/3'), Dulcian 16', Trompete Harmonique 8', Clairon Harmonique 4', Tremolo. IV. Manual (Fernwerk): Stillgedeckt 16', Flötenprinzipal 8', Portunalflöte 8', Violine 8', Vox Angelica 8' (vanaf c), Kupferflöte 4', Flautino 2', Kornettmixtur 3 fach, Oboe 8', Vox Humana 8', Tremolo. Pedal: Prinzipalbaß 16', Violon 16', Subbaß 16', Bourdonbaß 16' (transmissie), Echobaß 16' (transmissie), Quintbaß 10 2/3', Prinzipalflöte 8', Gedeckt 8', Choralbaß 4', Nachthorn 2', Pedalmixtur 3-5 fach, Sordun 32', Posaune 16', Dulcian 16' (transmissie), Trompete 8' (transmissie), Clairon 4' (transmissie). Koppeln: I. Manual - II. Manual, I. Manual - III. Manual, I. Manual - IV. Manual, II. Manual - III. Manual, Pedal - I. Manual, Pedal - II. Manual, Pedal - III. Manual, Pedal - IV. Manual. Superoktavkoppeln: I. Manual - II. Manual, I. Manual - III. Manual, II. Manual - III. Manual, Pedal - I. Manual, Pedal - III. Manual, I. Manual, II. Manual, III. Manual, IV. Manual. Suboktavkoppeln: I. Manual - II. Manual, I. Manual - III. Manual, II. Manual - III. Manual, Manual, II. Manual, III. Manual, IV. Manual. Spielhilfen: 8 freie Kombinationen, Tutti, Crescendo-Decrescendo Walze, Automatisches Pedal, Rohrwerke Ab, 16' Ab, Generalkoppel.

Literatur	Die neue Orgel der Pfarre Breitenfeld : Festschrift. - Wien : Pfarrkirche Breitenfeld, 2001.
Weblinks	https://www.breitenfeld.info/category/orgel/
