Complete description of the selected organ
Source: firma Steinmeyer

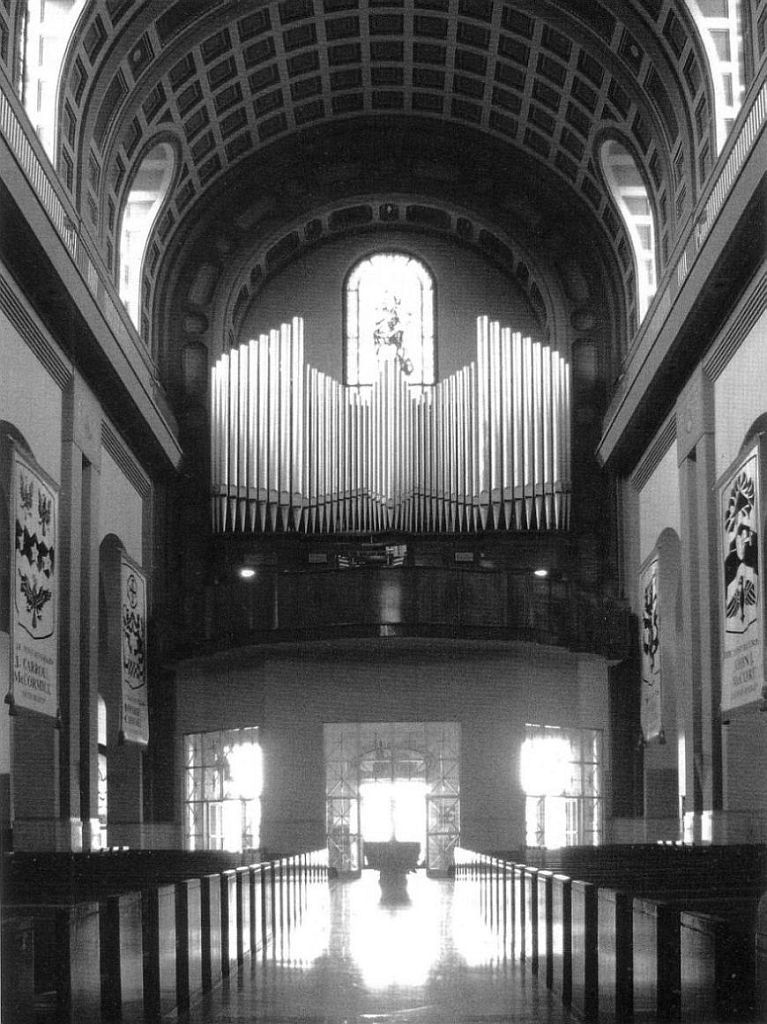

Altoona, USA (Pennsylvania) - Roman Catholic Cathedral of the Blessed Sacrament
Description nr.: 2002853.
Built by: G.F. Steinmeyer und Co. (1931) - opus 1543
De firma Steinmeyer leverde in 1931 een orgel aan de kathedraal van het Heilige Sacrament in Altoona, Pennsylvania, Usa. Het is in 1955 door Aeolion-Skinner technisch gerestaureerd. George Steinmeyer maakte het orgel in 1960 schoon en schoof enkele registers een octaaf op. Bij een grondige restauratie door de firma Columbia Organ Works in 1990-1992 is het instrument weer geheel in de oorspronkelijke staat teruggebracht.
Technical data
Specification
Great (C-c''''): Open Diapason 16', First Diapason 8', Second Diapason 8', Gamba 8', Gemshorn 8', Bordun 8', Quintadena 8', Octave 4', Spitzflöte 4', Quinte 2 2/3', Super Octave 2', Mixtur 4-6 ranks, Scharff 4 ranks, Cornett 3-5 ranks, Trompet 16', Tuba 8', Clarine 4'.
Swell (C-c''''): Lieblich Gedeckt 16', Diapason 8', Viola 8', Cor de Nuit 8', Spitzflöte 8', Unda Maris 8', Octave 4', Blockflöte 4', Nasard 2 2/3', Schwiegel 2', Tierce 1 3/5', Schweizerflöte 1', Grossmixtur 5 ranks, Cymbel 4 ranks, Bombarde 16', Feldtrompete 8', Euphone 4', Tremolo.
Choir (C-c''''): Salicional 16', Violin Diapason 8', Aeoline 8', Vox Coelestis 8' (TC), Rohrgedeckt 8', Fernflöte 8', Fugara 4', Flauto Traverso 4', Larigot 2 ranks, Harmonica Aetheria 3 ranks, Krummhorn 8', Kopfregal 4', Tremolo.
Pedal (C-g'): Diapason 16', Violon 16', Salicional 16' - transmissie van Choir, Subbass 16', Lieblich Gedeckt 16' - transmissie van Swell, Grossquinte 10 2/3', Octave 8', Violoncello 8', Cor de Nuit 8' - transmissie van Swell, Octave 4', Waldflöte 2', Rauschpfeife 4 ranks, Kontrabombard 32', Posaune 16', Trompet 8', Clairon 4' - transmissie van Great.
Couplers: Swell to Great, Swell to Choir, Choir to Great, Great to Pedal, Swell to Pedal, Choir to Pedal, Swell Unison Off, Swell Sub, Swell Super, Swell to Great Sub, Swell to Great Super, Choir Unison Off, Choir Sub, Choir Super.
Accessories: 3 vrije combiaties, Crescendo off/on, Sforzando-piston (2), Tongwerken af, Rollschweller, Electronisch geheugensysteem met 24 combinaties.
Source: firma Steinmeyer
Altoona, USA (Pennsylvania) - Roman Catholic Cathedral of the Blessed Sacrament
Description nr.: 2002853.
Built by: G.F. Steinmeyer und Co. (1931) - opus 1543
Year | Builder | Opus | Activity | 1931 | G.F. Steinmeyer und Co. | 1543 | new organ | 1955 | Aeolian-Skinner Organ Company | 1291 | restoration | 1960 | G.F. Steinmeyer und Co. | maintenance/reparations | 1992 | Columbia Organ Works | restoration |
De firma Steinmeyer leverde in 1931 een orgel aan de kathedraal van het Heilige Sacrament in Altoona, Pennsylvania, Usa. Het is in 1955 door Aeolion-Skinner technisch gerestaureerd. George Steinmeyer maakte het orgel in 1960 schoon en schoof enkele registers een octaaf op. Bij een grondige restauratie door de firma Columbia Organ Works in 1990-1992 is het instrument weer geheel in de oorspronkelijke staat teruggebracht.
Technical data
Number of stops per division | |
- Great | 17 |
- Swell | 17 |
- Choir | 12 |
- Pedal | 16 (12) |
Total number of stops | 62 (58) |
Key action | Electropneumatic |
Stop action | Electropneumatic |
Windchest(s) | Membraanlade |
Wind pressure | 100 mm |
Specification
Great (C-c''''): Open Diapason 16', First Diapason 8', Second Diapason 8', Gamba 8', Gemshorn 8', Bordun 8', Quintadena 8', Octave 4', Spitzflöte 4', Quinte 2 2/3', Super Octave 2', Mixtur 4-6 ranks, Scharff 4 ranks, Cornett 3-5 ranks, Trompet 16', Tuba 8', Clarine 4'.
Swell (C-c''''): Lieblich Gedeckt 16', Diapason 8', Viola 8', Cor de Nuit 8', Spitzflöte 8', Unda Maris 8', Octave 4', Blockflöte 4', Nasard 2 2/3', Schwiegel 2', Tierce 1 3/5', Schweizerflöte 1', Grossmixtur 5 ranks, Cymbel 4 ranks, Bombarde 16', Feldtrompete 8', Euphone 4', Tremolo.
Choir (C-c''''): Salicional 16', Violin Diapason 8', Aeoline 8', Vox Coelestis 8' (TC), Rohrgedeckt 8', Fernflöte 8', Fugara 4', Flauto Traverso 4', Larigot 2 ranks, Harmonica Aetheria 3 ranks, Krummhorn 8', Kopfregal 4', Tremolo.
Pedal (C-g'): Diapason 16', Violon 16', Salicional 16' - transmissie van Choir, Subbass 16', Lieblich Gedeckt 16' - transmissie van Swell, Grossquinte 10 2/3', Octave 8', Violoncello 8', Cor de Nuit 8' - transmissie van Swell, Octave 4', Waldflöte 2', Rauschpfeife 4 ranks, Kontrabombard 32', Posaune 16', Trompet 8', Clairon 4' - transmissie van Great.
Couplers: Swell to Great, Swell to Choir, Choir to Great, Great to Pedal, Swell to Pedal, Choir to Pedal, Swell Unison Off, Swell Sub, Swell Super, Swell to Great Sub, Swell to Great Super, Choir Unison Off, Choir Sub, Choir Super.
Accessories: 3 vrije combiaties, Crescendo off/on, Sforzando-piston (2), Tongwerken af, Rollschweller, Electronisch geheugensysteem met 24 combinaties.
Compound stop | Composition |
Mixtur 4-6 ranks (Great) | C: 2' - 1 1/3' - 1' - 2/3'. f°: 2 2/3' - 2' - 1 1/3' - 1' - 2/3'. f': 4' - 2 2/3' - 2' - 1 1/3' - 1' - 1'. f'': 5 1/3' - 4' - 2 2/3' - 2 2/3' - 2' - 2'. |
Scharff 4 ranks (Great) | C: 1 1/3' - 1' - 4/5' - 2/3'. c': 2' - 1 3/5' - 1 1/3' - 1'. c'': 2 2/3' - 2' - 1 3/5' - 1 1/3'. c''': 4' - 3 1/5' - 2 2/3' - 2'. |
Cornett 3-5 ranks (Great) | C: 2 2/3' - 2' - 1 3/5'. c°: 4' - 2 2/3' - 2' - 1 3/5'. g°: 8' - 4' - 2 2/3' - 2' - 1 3/5'. |
Grossmixtur 5 ranks (Swell) | C: 2 2/3' - 2' - 1 1/3' - 1' - 2/3'. c': 4' - 2 2/3' - 2' - 1 1/3' - 1'. c'': 5 1/3' - 4' - 2 2/3' - 2' - 1 1/3'. c''': 8' - 5 1/3' - 4' - 2 2/3' - 2'. |
Cymbel 4 ranks (Swell) | C: 1/2' - 1/3' - 1/4' - 1/6'. cìs°: 1' - 2/3' - 1/2' - 1/3'. cis': 1 1/3' - 1' - 2/3' - 1/2'. cis'': 2' - 1 1/3' - 1' - 2/3'. c''': 2 2/3' - 2 2/3' - 2' - 1 1/3'. |
Larigot 2 ranks (Choir) | C: 2' - 1 1/3'. ais'': 2 2/3' - 2'. |
Harmonica Aetheria 3 ranks (Choir) | C: 2 2/3' - 2' - 1 1/3'. c''': 4' - 2 2/3' - 2'. |
Rauschpfeife 4 ranks (Pedal) | C: 1 1/3' - 1' - 2/3' - 1/2'. c': 4' - 2 2/3' - 2' - 1 1/3'. |
