Complete description of the selected organ
Photo: Andreas Werner
Frankfurt am Main, Deutschland (Hessen) - Liebfrauenkirche
Municipal: Frankfurt am Main
Address: Liebfrauenberg, 60313, Frankfurt am Main
Website: http://www.liebfrauen.net/
Description nr.: 2018838.
Built by: Karl Göckel (2008) - opus 67

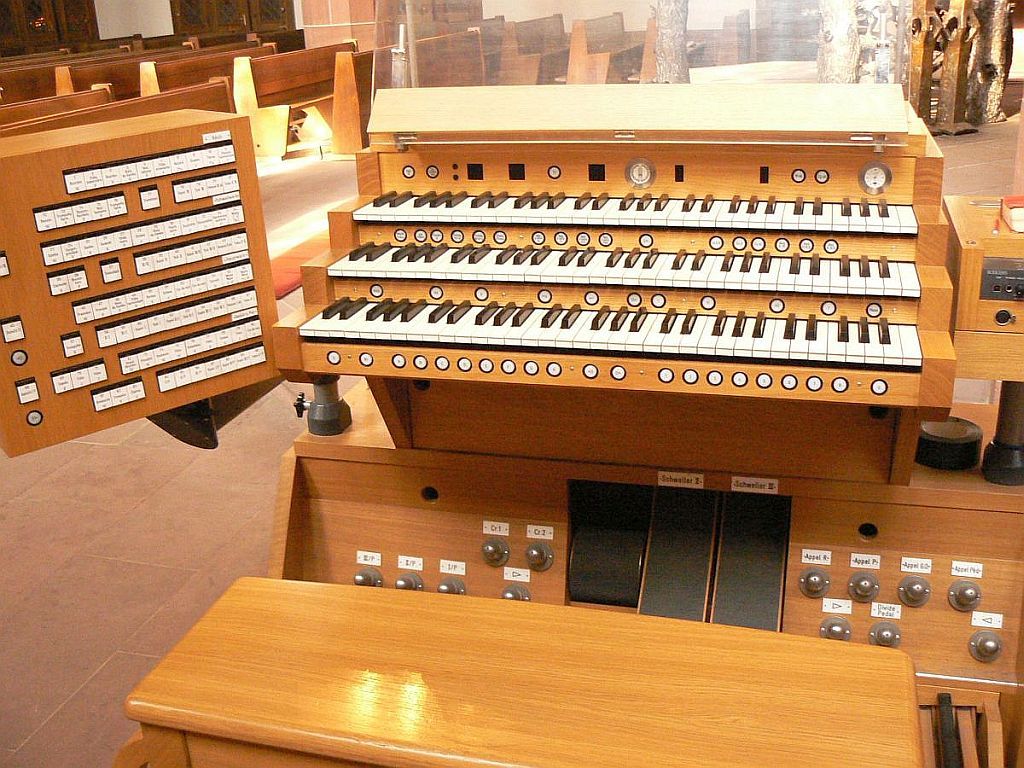

Karl Göckel built a new organ for the Liebfrauenkirche in Frankfurt am Main in 2007-2008. It was dedicated on August 9, 2008. In addition to the main console on top of the organ gallery, the organ also has a second console, which is set up at the altar.
Technical data
Specification
Hauptwerk (C-c''''): Prinzipal 16', Principal 8', Viola da Gamba 8', Flûte Harmonique 8', Bordun 8', Oktave 4', Cor de Nuit 4', Cor de Nuit 2' - unit, Cornett 5 fach, Mixtur Major 4 fach (2'), Mixtur Minor 3 fach (1 1/3'), Trompette 8', Chamade 8'.
Schwellwerk (C-c''''): Gambe 16', Principal 8', Gambe 8' - unit, Gedeckt 8', Unda Maris 8' (from c°), Octave 4', Viola da Gamba 4' - unit, Flauto Dolce 4', Doublette 2', Sesquialter 2 fach, Harmonia Aetheria 4 fach, Mixtur 4 fach (2') - transmissie van Hauptwerk, Klarinette 8'.
Récit (C-c''''): Bourdon 16', Flûte Traversière 8', Bourdon 8' - unit, Gambe 8', Voix Céleste 8' (from c°), Flûte Octaviante 4', Nasard 2 2/3', Octavin 2', Tierce 1 3/5', Piccolo Harmonique 1', Basson 16', Trompette Harmonique 8', Hautbois 8', Voix humaine 8', Trompette Harmonique 4' - unit.
Pedal (C-g'): Untersatz 32' - akoestisch, Principal 16' - transmissie van Hauptwerk, Subbass 16', Flûte 16', Oktave 8', Flûte 8', Oktave 4', Flûte 4' - unit, Cor de Nuit 2' - transmissie van Hauptwerk, Bombarde 16', Trompette 8', Trompette 4' - unit.
Photo: Andreas Werner
Frankfurt am Main, Deutschland (Hessen) - Liebfrauenkirche
Municipal: Frankfurt am Main
Address: Liebfrauenberg, 60313, Frankfurt am Main
Website: http://www.liebfrauen.net/
Description nr.: 2018838.
Built by: Karl Göckel (2008) - opus 67
Karl Göckel built a new organ for the Liebfrauenkirche in Frankfurt am Main in 2007-2008. It was dedicated on August 9, 2008. In addition to the main console on top of the organ gallery, the organ also has a second console, which is set up at the altar.
Technical data
Number of stops per division | |
- Hauptwerk | 13 (12) |
- Schwellwerk | 13 (10) |
- Récit | 15 (13) |
- Pedal | 12 (7) |
Total number of stops | 53 (42) |
Key action | Mechanical |
Stop action | Electrical |
Windchest(s) | Slider chests |
Specification
Hauptwerk (C-c''''): Prinzipal 16', Principal 8', Viola da Gamba 8', Flûte Harmonique 8', Bordun 8', Oktave 4', Cor de Nuit 4', Cor de Nuit 2' - unit, Cornett 5 fach, Mixtur Major 4 fach (2'), Mixtur Minor 3 fach (1 1/3'), Trompette 8', Chamade 8'.
Schwellwerk (C-c''''): Gambe 16', Principal 8', Gambe 8' - unit, Gedeckt 8', Unda Maris 8' (from c°), Octave 4', Viola da Gamba 4' - unit, Flauto Dolce 4', Doublette 2', Sesquialter 2 fach, Harmonia Aetheria 4 fach, Mixtur 4 fach (2') - transmissie van Hauptwerk, Klarinette 8'.
Récit (C-c''''): Bourdon 16', Flûte Traversière 8', Bourdon 8' - unit, Gambe 8', Voix Céleste 8' (from c°), Flûte Octaviante 4', Nasard 2 2/3', Octavin 2', Tierce 1 3/5', Piccolo Harmonique 1', Basson 16', Trompette Harmonique 8', Hautbois 8', Voix humaine 8', Trompette Harmonique 4' - unit.
Pedal (C-g'): Untersatz 32' - akoestisch, Principal 16' - transmissie van Hauptwerk, Subbass 16', Flûte 16', Oktave 8', Flûte 8', Oktave 4', Flûte 4' - unit, Cor de Nuit 2' - transmissie van Hauptwerk, Bombarde 16', Trompette 8', Trompette 4' - unit.
Literature |
Festschrift zur Einweihung der neuen Göckel-Orgel am 9. August 2008 : Eine neue Orgel für Liebfrauen. |
