Complete description of the selected organ
Source: fotokaart Felsberg Orgelbau

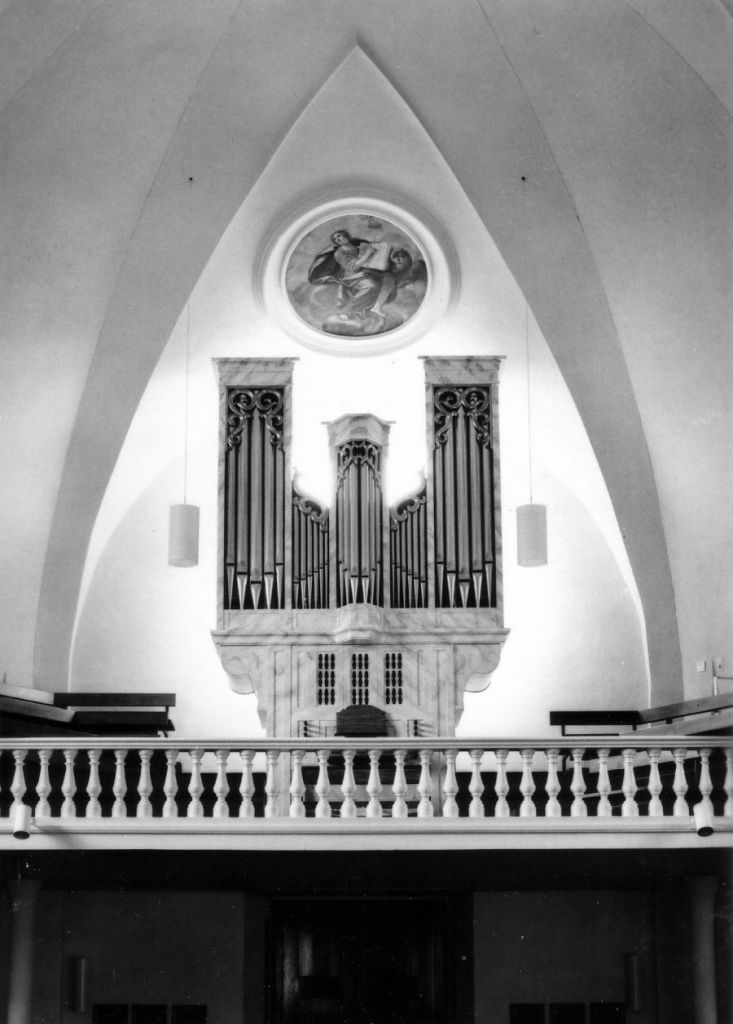

Rhäzüns, Die Schweiz / La Suisse (Graubünden) - Katholische Pfarrkirche
Description nr.: 2005163.
Built by: Felsberg Orgelbau (1974) - opus 23
Technical data
Specification
Hauptwerk (C-f'''): Prinzipal 8', Rohrgedeckt 8', Oktave 4', Gemshorn 2', Mixtur 3-5 fach (1 1/3').
Brustwerk (C-f'''): Gedackt 8', Rohrflöte 4', Prinzipal 2', Quint 1 1/3'.
Pedal (C-f'): Subbass 16', Oktave 8', Trompete 8'.
Couplers: Hauptwerk - Brustwerk, Pedal - Hauptwerk, Pedal - Brustwerk.
Source: fotokaart Felsberg Orgelbau
Rhäzüns, Die Schweiz / La Suisse (Graubünden) - Katholische Pfarrkirche
Description nr.: 2005163.
Built by: Felsberg Orgelbau (1974) - opus 23
Technical data
Number of stops per division | |
- Hauptwerk | 5 |
- Brustwerk | 4 |
- Pedal | 3 |
Total number of stops | 12 |
Key action | Mechanical |
Stop action | Mechanical |
Windchest(s) | Slider chests |
Pitch | a' = 440 Hz |
Temperament | Equal temperament |
Specification
Hauptwerk (C-f'''): Prinzipal 8', Rohrgedeckt 8', Oktave 4', Gemshorn 2', Mixtur 3-5 fach (1 1/3').
Brustwerk (C-f'''): Gedackt 8', Rohrflöte 4', Prinzipal 2', Quint 1 1/3'.
Pedal (C-f'): Subbass 16', Oktave 8', Trompete 8'.
Couplers: Hauptwerk - Brustwerk, Pedal - Hauptwerk, Pedal - Brustwerk.
