Description complète d'orgue sélectionné
Photo: Bert Wisgerhof

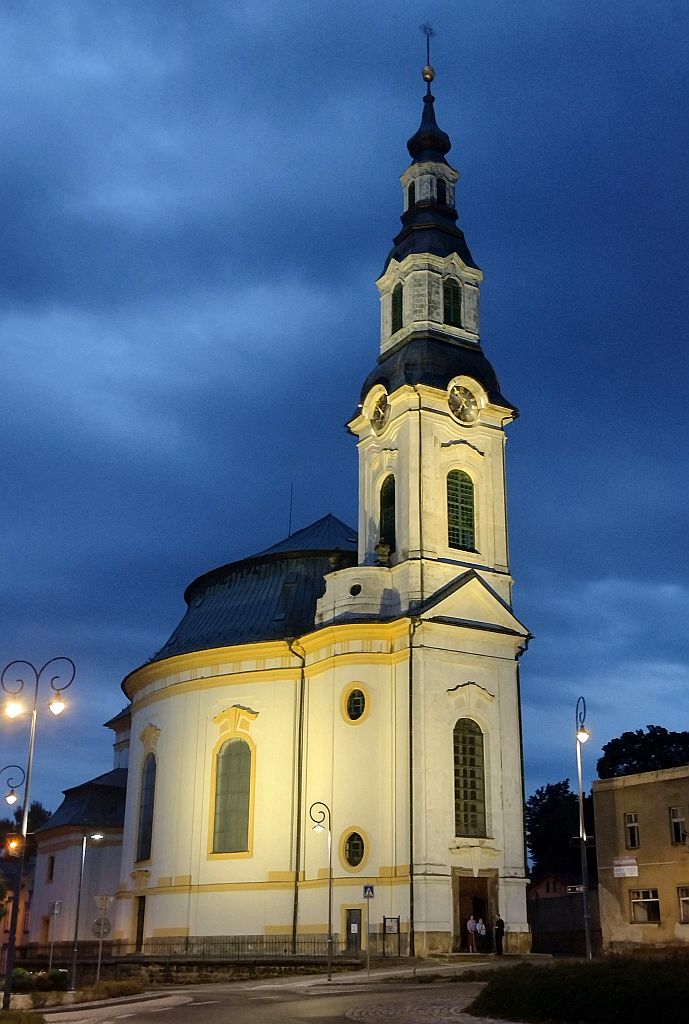

Nový Bor, Česká Republika (Liberecký Kraj) - Kostel Nanebevzeti Panny Marie
Commune: Nový Bor
Région:Čechy
Adresse: Špálova, 473 01, Nový Bor
Site Web: http://farnostnb.cz/
Description no.: 2077202.
Bâti par: Heinrich Schiffner (1895)

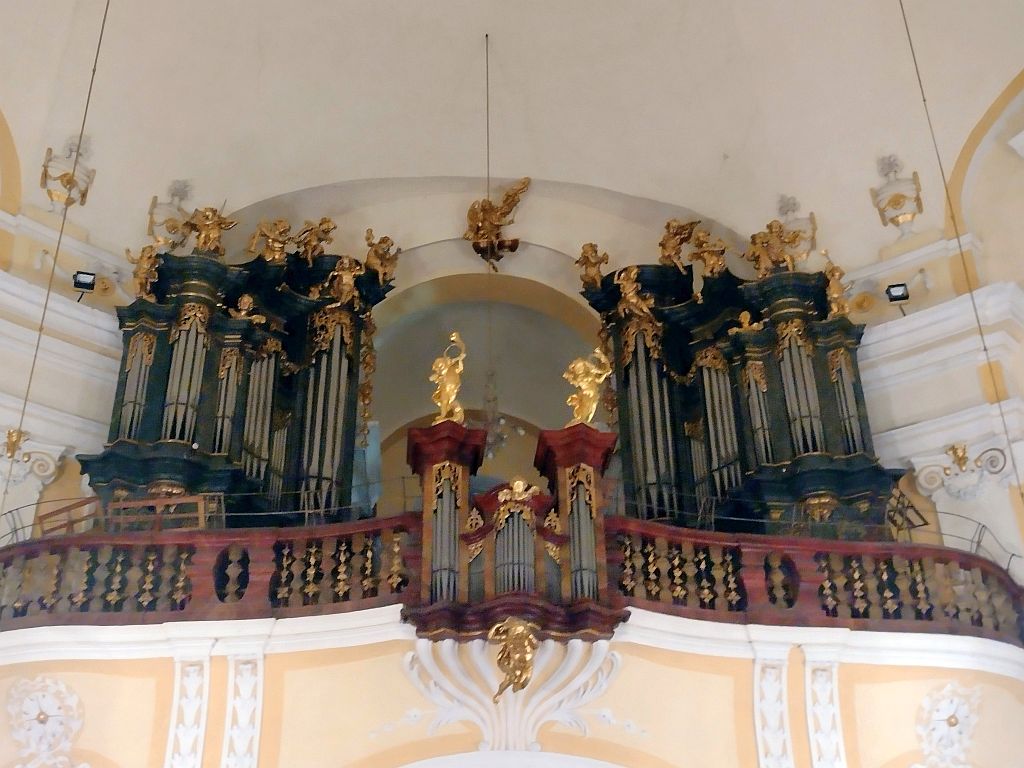

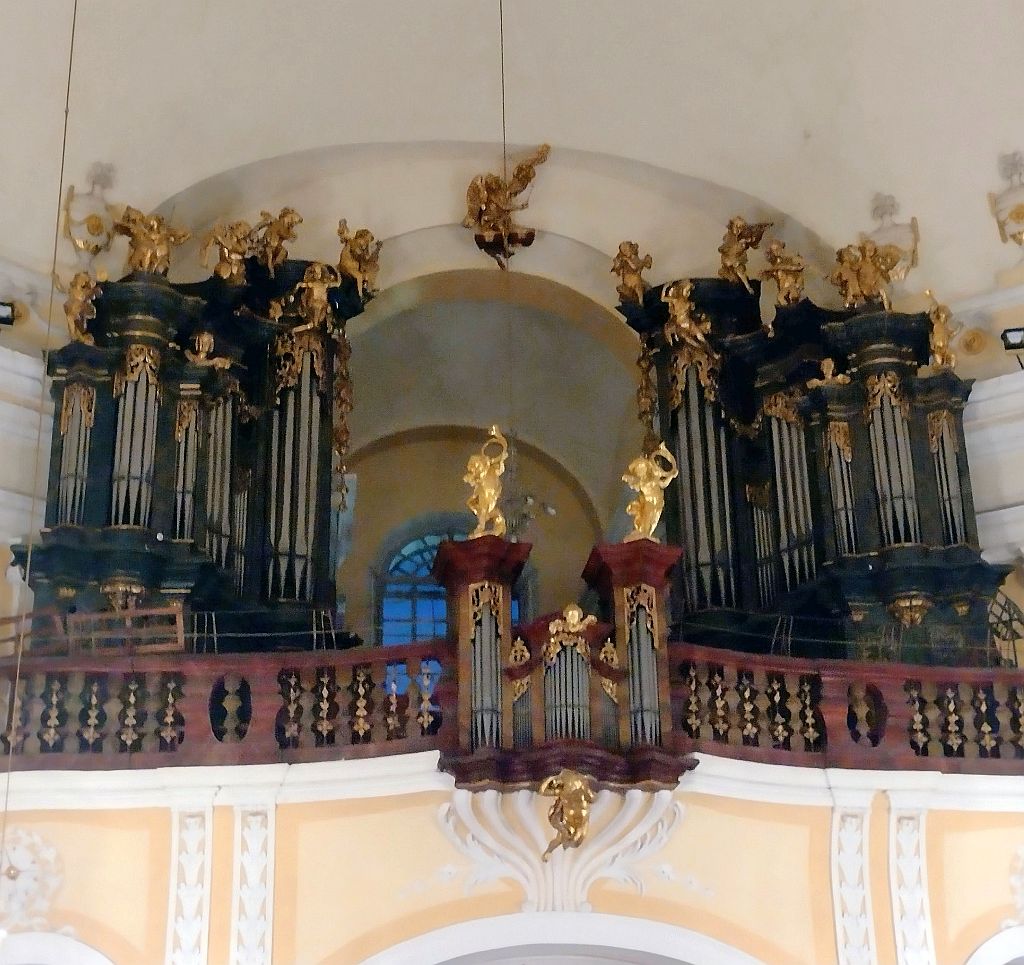

L'orgue comprend le parent le matériel: Organ cases de 1766 de Anton Reiss
In 1790 Anton Reiss installed an organ for the Kostel Nanebevzeti Panny Marie in Nový Bor, also called Haida at this time. The organ was originally built in 1766 for the Charles Borromeo Church in Prague. This church was closed in 1785 and converted into a military warehouse. The organ was removed in 1788, and the church was later demolished. Only the three-part organ case with the front pipes remains of this organ. In 1895, Heinrich Schiffner installed a new interior in the cases with mechanical action and conical chests. The bellows were renewed in 1924 by the Gebrüder Rieger from Jägerndorf (Krnov).
Court sommaire des endroits où l'orgue s'est trouvé
Données techniques
Composition
Hauptwerk (C-f'''): Principal 8', Flauta 8', Gemshorn 8', Bourdon 8', Octava 4', Flauta 4', Waldflöte 2', Mixtur 4 fach (2 2/3').
Positiv (C-f'''): Geigenprincipal 8', Gedackt 8', Aeoline 8', Vox Coelestis 8' (c°-f'''), Dolce 4'.
Pedal (C-c'): Violonbass 16', Subbass 16', Octavbass 8', Cello 8'.
Accouplements: Hauptwerk - Positiv, Pedal - Hauptwerk, Hauptwerk Suboktavkoppel.
Jouer conseils: 3 feste Kombinationen (p - mf - f), Crescendowalze.
Photo: Bert Wisgerhof
Nový Bor, Česká Republika (Liberecký Kraj) - Kostel Nanebevzeti Panny Marie
Commune: Nový Bor
Région:Čechy
Adresse: Špálova, 473 01, Nový Bor
Site Web: http://farnostnb.cz/
Description no.: 2077202.
Bâti par: Heinrich Schiffner (1895)
L'orgue comprend le parent le matériel: Organ cases de 1766 de Anton Reiss
| Année | Facteur | Opus | Activité | 1766 | Anton Reiss | orgue neuf | 1790 | Anton Reiss | transfer | 1895 | Heinrich Schiffner | orgue neuf dans buffet vieille | 1924 | Gebrüder Rieger | activités différentes |
In 1790 Anton Reiss installed an organ for the Kostel Nanebevzeti Panny Marie in Nový Bor, also called Haida at this time. The organ was originally built in 1766 for the Charles Borromeo Church in Prague. This church was closed in 1785 and converted into a military warehouse. The organ was removed in 1788, and the church was later demolished. Only the three-part organ case with the front pipes remains of this organ. In 1895, Heinrich Schiffner installed a new interior in the cases with mechanical action and conical chests. The bellows were renewed in 1924 by the Gebrüder Rieger from Jägerndorf (Krnov).
Court sommaire des endroits où l'orgue s'est trouvé
| 1766 | Praha | Kostel sv. Karla Boromejského (Nové Město) |
| 1790 | Nový Bor | Kostel Nanebevzeti Panny Marie |
Données techniques
| Nombre de registres par manuel | |
| - Hauptwerk | 8 |
| - Positiv | 5 |
| - Pedal | 4 |
| Nombre de jeux total | 17 |
| Transmission des clés | Mechanical |
| Transmission des jeux | Pneumatic |
| Sommier(s) | Cone chests |
Composition
Hauptwerk (C-f'''): Principal 8', Flauta 8', Gemshorn 8', Bourdon 8', Octava 4', Flauta 4', Waldflöte 2', Mixtur 4 fach (2 2/3').
Positiv (C-f'''): Geigenprincipal 8', Gedackt 8', Aeoline 8', Vox Coelestis 8' (c°-f'''), Dolce 4'.
Pedal (C-c'): Violonbass 16', Subbass 16', Octavbass 8', Cello 8'.
Accouplements: Hauptwerk - Positiv, Pedal - Hauptwerk, Hauptwerk Suboktavkoppel.
Jouer conseils: 3 feste Kombinationen (p - mf - f), Crescendowalze.
| Références |
Pražské Varhany / Vladimír Němec. - Praha : František Novák, 1944. |
 |
 |
