Description complète d'orgue sélectionné

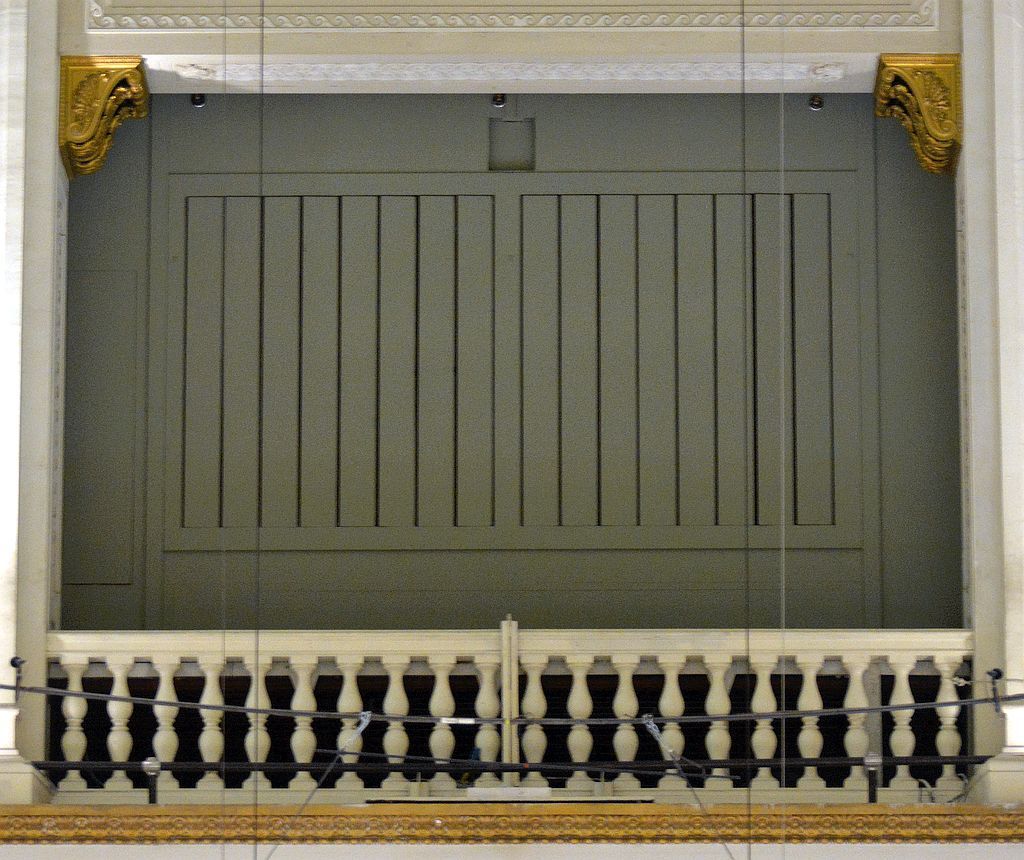

Photo: Piet Bron
Philadelphia, USA (Pennsylvania) - Macy's Department Store (Wanamaker Organ)
Commune: Philadelphia
Région:Philadelphia County
Adresse: 1300 Market Street, 19107, Philadelphia, PA
Site Web: http://www.macys.com/Philadelphia
Description no.: 2000673.
Bâti par: Los Angeles Art Organ Company (1904)
Court sommaire des endroits où l'orgue s'est trouvé
Données techniques
Composition
Great Organ (C-c''''): Sub Principal 32', Contra Gamba 16', Double Diapason 16', Sub Quint 10 2/3', Diapason Phonon 8', Diapason Major 8', First Diapason 8', Second Diapason 8', Third Diapason 8', Fourth Diapason 8', Gamba 8' (2 ranks), Major Tibia 8', Mezzo Tibia 8', Minor Tibia 8', Covered Tibia 8', Flute 8', Double Flute 8', Nazard Flute 8' (2 ranks), Harmonic Flute 8', Quint 5 1/3', Harmonic Flute 4', Principal 4', Octave 4', Tierce 3 1/5', Octave Quint 2 2/3', Super Octave 2', Mixture 7 ranks, Double Trumpet 16', Trumpet 8', Harmonic Trumpet 8', Tuba 8', Harmonic Clarion 4', Chorus Diapason Magna 8', Chorus Stentorphone 8', Chorus First Diapason 8', Chorus Second Diapason 8', Chorus Major Flute 8', Chorus Double Flute 8', Chorus Gamba 8', Chorus Flute 4', Chorus Octave 4', Chorus Nazard 2 2/3'.
Swell Organ (C-c''''): Double Diapason 16', Soft Bourdon 16', Stentorphone 8', Horn Diapason 8', Violon Diapason 8', Bell Flute 8', Orchestral Flute 8', Harmonic Flute 8', Grand Flute 8' (2 ranks), Double Flute 8'.
Under expression: Contra Bass 16', Tibia Dura 8', Clarabella 8', Melodia 8', Soft Dulciana 8', Gamba Celeste 8' (2 ranks), Gamba 8', Violoncello 8', Viol 8', Viol 8' - zwevend, Viola 8', Quint Bourdon 5 1/3', Quint Viol 5 1/3', Harmonic Flute 4', First Octave 4', Second Octave 4', Octave Viol 4', Violina 4', Tierce 3 1/5', Nazard 2 2/3', Piccolo 2', Viol Cornet 4 ranks, Mixture 6 ranks, Corroborating Mixture 5 ranks, String Mixture 5 ranks, Bassoon 16', Contra Fagotto 16', Double Oboe Horn 16', Bassoon 8', Trombone 8', First Oboe 8', Fagotto 8', Oboe 8', Trumpet 8', Horn 8', Bassett Horn 8', Clarinet 8' (2 ranks), Clarinet 8', Vox Humana 8' (2 ranks), Harmonic Clarion 4', Musette 4'.
Choir Organ (C-c''''): Double Dulciana 16', Dulciana 8', Open Diapason 8', Violin Diapason 8', Stopped Diapason 8', Concert Flute 8', Salicional 8', Quintadena 8', Vox Angelica 8', Vox Celeste 8', Keraulophone 8', Forest Flute 4', Salicet 4', Piccolo 2', Soft Cornet 6 ranks, Saxophone 16', Saxophone 8', English Horn 8', Clarinet 8'.
Solo Organ (C-c''''): Double Open Diapason 16', Grand Viol 16', First Diapason 8', Second Diapason 8', Third Diapason 8', Violin Diapason 8', Viol 8', Viol 8' - zwevend, Harmonic Flute 8', Tierce Flute 8' (2 ranks), Chimney Flute 8', Clarabella 8', Gemshorn 8', Nazard Gamba 8' (2 ranks), Grand Gamba 8', Grand Gamba 8' - zwevend, Quintaphone 8' (2 ranks), Quint Diapason 5 1/3', Harmonic Flute 4', Octave 4', Harmonic Tierce 3 1/5', Twelfth Harmonic 2 2/3', Piccolo 2', Grand Mixture 6 ranks, Mixture 6 ranks, Mixture 5 ranks, Double Trumpet 16', Tuba 16', Trumpet 8', Soft Tuba 8', Cornopean 8', Ophicleide 8', Musette 8', Ophicleide 4', Tuba 4'.
Ethereal Organ (C-c''''): Bourdon 16', First Open Diapason 8', Second Open Diapason 8', Clear Flute 8', Harmonic Flute 8', Double Flute 8', Quint Flute 8', Grand Gamba 8', Gamba 8' - zwevend, Octave 4', Harmonic Flute 4', Twelfth Harmonic 2 2/3', Harmonic Piccolo 2', Mixture 4 ranks, Tuba Profunda 16', Tuba Mirabilis 8', French Trumpet 8', Grand Clarinet 8', Post Horn 8', Tuba Clarion 4'.
Ancillary Divisions (C-c''''):
Echo Organ: Bourdon 16', Open Diapason 8', Violin Diapason 8', Stopped Diapason 8', Night Horn 8', Clarabella 8', Melodia 8', Orchestral Viol 8' (2 ranks), Soft Viol 8', Soft Viol 8' - zwevend, Unda Maris 8' (2 ranks), Open Quint 5 1/3', Octave 4', Harmonic Flute 4', Mellow Flute 4', Mixture 6 ranks, Cornet Mixture 5 ranks, Double Trumpet 16', Trumpet 8', Capped Oboe 8', Euphone 8', Vox Humana 8' (2 ranks).
Orchestral Organ: Contra Quintadena 16', Duophone 8', Tibia 8', Covered Tibia 8', Concert Flute 8', Harmonic Flute 8', Mellow Flute 8', String Flute 8', Double Flute 8', Hollow Flute 8', Harmonic Flute 4', Orchestral Flute 4', Covered Flute 4', Octave 4', Harmonic Piccolo 2', English Horn 16', Bass Clarinet 16', Bass Saxophone 16', Bassoon 16', English Horn 8', Orchestral Clarinet 8', Saxophone 8', Orchestral Bassoon 8', Oboe 8', Orchestral Oboe 8', First French Horn 8', Second French Horn 8', Third French Horn 8', Kinura 8', Muted Cornet 8', Vox Humana 8', First Vox Humana 8', Second Vox Humana 8', Third Vox Humana 8', Fourth Vox Humana 8', Fifth Vox Humana 8', Sixth Vox Humana 8'.
String Organ: Violone 16', First Contra Gamba 16', Second Contra Gamba 16', First Contra Viol 16', Second Contra Viol 16', First Viol 16', Second Viol 16', Violin Diapason 8', Gamba 8', Nazard Gamba 8' (2 ranks), Nazard Gamba (sharp) 8' (2 ranks), First Cello (natural) 8', First Cello (sharp) 8', First Cello (flat) 8', Second Cello (natural) 8', Second Cello (sharp) 8', Second Cello (flat) 8', First Orchestral Violin (natural) 8', First Orchestral Violin (sharp) 8', First Orchestral Violin (flat) 8', Second Orchestral Violin (natural) 8', Second Orchestral Violin (sharp) 8', Second Orchestral Violin (flat) 8', Third Orchestral Violin (natural) 8', Third Orchestral Violin (sharp) 8', Third Orchestral Violin (flat) 8', Fourth Orchestral Violin (natural) 8', Fourth Orchestral Violin (sharp) 8', Fourth Orchestral Violin (flat) 8', Fifth Orchestral Violin (natural) 8', Fifth Orchestral Violin (sharp) 8', Fifth Orchestral Violin (flat) 8', Sixth Orchestral Violin (natural) 8', Sixth Orchestral Violin (sharp) 8', Sixth Orchestral Violin (flat) 8', First Muted Violin (natural) 8', First Muted Violin (sharp) 8', First Muted Violin (flat) 8', Second Muted Violin (natural) 8', Second Muted Violin (sharp) 8', Second Muted Violin (flat) 8', Third Muted Violin (natural) 8', Third Muted Violin (sharp) 8', Third Muted Violin (flat) 8', Fourth Muted Violin (natural) 8', Fourth Muted Violin (sharp) 8', Fourth Muted Violin (flat) 8', Fifth Muted Violin (natural) 8', Fifth Muted Violin (sharp) 8', Fifth Muted Violin (flat) 8', Sixth Muted Violin (natural) 8', Sixth Muted Violin (sharp) 8', Sixth Muted Violin (flat) 8', First Orchestral Violina (natural) 4', First Orchestral Violina (sharp) 4', Second Orchestral Violina (natural) 4', Second Orchestral Violina (sharp) 4', Quint Violina (natural) 5 1/3', Quint Violina (sharp) 5 1/3', Tierce Violina (natural) 3 1/5', Tierce Violina (sharp) 3 1/5', Nazard Violina (natural) 2 2/3', Nazard Violina (sharp) 2 2/3', Super Violina (natural) 2', Super Violina (sharp) 2', First Dulciana (natural) 8', First Dulciana (sharp) 8', Second Dulciana (natural) 8', Second Dulciana (sharp) 8', Third Dulciana (natural) 8', Third Dulciana (sharp) 8', Fourth Dulciana (natural) 8', Fourth Dulciana (sharp) 8', Fifth Dulciana (natural) 8', Fifth Dulciana (sharp) 8', Sixth Dulciana (natural) 8', Sixth Dulciana (sharp) 8', First Octave Dulciana (natural) 4', First Octave Dulciana (sharp) 4', Second Octave Dulciana (natural) 4', Second Octave Dulciana (sharp) 4', Dulciana Mutation 5 ranks.
Percussion Organ: Major Chimes (c - c'' (37 tubular chimes)), Minor Chimes (G - g' (25 tubular chimes)), Metalophone (c - c''' (49 metal bars)), Celeste (c - c''' (49 metal bars)), Piano I, Piano II (88 tonen echte piano), Harp I, Harp II, Gongs (c - c''' (49 metal bars)).
Percussion Organ (C-g'):
Main Pedal Organ: Gravissima 64' - akoestisch, Contra Diaphone 32', First Contra Open Diapason 32', Second Contra Open Diapason 32', Contra Bourdon 32', Diaphone 16', First Open Diapason 16', Second Open Diapason 16', Third Open Diapason 16', Bourdon 16', Soft Bourdon 16', Open Flute 16', Violone 16', Gamba 16', Dulciana 16', Open Quint 10 2/3', Stopped Quint 10 2/3', Open Diapason 8', Octave Soft Bourdon 8', Soft Flute 8', Soft Dulciana 8', Stentorphone 8', Octave 8', First Tibia 8', Second Tibia 8', First Cello 8', Second Cello 8', Soft Flute 4', First Tibia 4', Second Tibia 4', Principal 4', Octave 4', Grand Mutation 10 ranks, Mixture 7 ranks, Mixture 8 ranks (32'), Mixture 8 ranks (16'), Contra Bombarde 32', Bombarde 16', Trombone 16', Tuba 16', Euphonium 16', Contra Fagotto 16', Bombarde 8', Octave Fagotto 8', Tromba 8', Clarion 4'.
Ethereal Pedal Organ: Acoustic Bass 32', Diapason 16', Bombarde 16', Bombarde 8'.
Echo Pedal Organ: Open Diapason 16', Stopped Diapason 16'.
String Pedal Organ: Contra Diaphone 32', Contra Gamba 32', Diaphone 16', String Diaphone 16', Mutated Diaphone 16', Gamba 16', First Violone 16', Second Violine 16', Viol 16', Viol 16' - zwevend, Mutated Viol 16', Mutated Viol 10 2/3', Diaphone 8', Gamba 8', First Violone 8', Second Violone 8', Viol 8', Viol 8' - zwevend, Mutated Viol 8', Mutated Viol 5 1/3', Violone 4', Mutated Viol 4', Mutated Viol 2 2/3', Mutated Viol 2', Mutated Viol 1 3/5', Mutated Viol 1 1/3', Mutated Viol 4/5', Mixture 12 ranks (32'), First Vox Humana 16', Second Vox Humana 16'.
Accouplements: Manual II - Manual I, Chorus - Manual I, Manual III - Manual I, Manual IV - Manual I, Manual V - Manual I, Manual VI - Manual I, Echo - Manual I, Orchestral - Manual I, Orchestral Labiale - Manual I, String - Manual I, String Cellos - Manual I, Percussion - Manual I, Manual I - Manual II, Manual III - Manual II, Manual IV - Manual II, Manual V - Manual II, Manual VI - Manual II, Echo - Manual II, Orchestral - Manual II, Orchestral Labiale - Manual II, String - Manual II, String Cellos - Manual II, Percussion - Manual II, Pedal - Manual II, Manual IV - Manual III, Manual V - Manual III, Manual VI - Manual III, Echo - Manual III, Orchestral - Manual III, String - Manual III, Percussion - Manual III, Manual V - Manual IV, Manual VI - Manual IV, Echo - Manual IV, Orchestral - Manual IV, String - Manual IV, Percussion - Manual IV, Manual IV - Manual V, Echo - Manual V, Orchestral - Manual V, String - Manual V, Chorus - Manual VI, Echo - Manual VI, Orchestral - Manual VI, String - Manual VI, Percussion - Manual VI, Manual I - Pedal, Manual II - Pedal, Manual III - Pedal, Manual IV - Pedal, Manual V - Pedal, Manual VI - Pedal, Echo - Pedal, String - Pedal, Percussion – Pedal, Manual I 16', Manual II - Manual I 16', Manual III - Manual I 16', Manual IV - Manual I 16', Manual V - Manual I 16', Manual VI - Manual I 16', Manual II 16', Chorus - Manual II 16', Manual I - Manual II 16', Manual III - Manual II 16', Manual IV - Manual II 16', Manual V - Manual II 16', Manual VI - Manual II 16', Manual III 16', Manual IV - Manual III 16', Manual V - Manual III 16', Manual VI - Manual III 16', Manual IV 16', Manual V - Manual IV 16', Manual VI - Manual IV 16', Manual V 16', Manual VI - Manual V 16', Manual VI 16', Echo 16', Orchestral 16', String 16', Manual I 4', Manual II - Manual I 4', Manual III - Manual I 4', Manual IV - Manual I 4', Manual V - Manual I 4', Manual VI - Manual I 4', Manual II 4', Chorus - Manual II 4', Manual I - Manual II 4', Manual III - Manual II 4', Manual IV - Manual II 4', Manual V - Manual II 4', Manual VI - Manual II 4', Manual III 4', Manual IV - Manual III 4', Manual V - Manual III 4', Manual VI - Manual III 4', Manual IV 4', Manual V - Manual IV 4', Manual VI - Manual IV 4', Manual V 4', Manual VI - Manual V 4', Manual VI 4', Echo 4', Orchestral 4', String 4', Manual I Unison Off, Manual II Unison Off, Chorus Unison Off, Manual III Unison Off, Manual IV Unison Off, Manual V Unison Off, Manual VI Unison Off, Echo Unison Off, Orchestral Unison Off, String Unison Off.
Jouer conseils: String Cellos silent, String Violins silent, String Mutations off, Pedal Divided, 46 General Setzer Combinations 4', Setzer Combinations for each division, Suboctavecouplers off, Superoctavecouplers off, 3 Tutti Combinations 3', Registercrescendo.
YouTube
Photo: Piet Bron
Philadelphia, USA (Pennsylvania) - Macy's Department Store (Wanamaker Organ)
Commune: Philadelphia
Région:Philadelphia County
Adresse: 1300 Market Street, 19107, Philadelphia, PA
Site Web: http://www.macys.com/Philadelphia
Description no.: 2000673.
Bâti par: Los Angeles Art Organ Company (1904)
| Année | Facteur | Opus | Activité | 1904 | Los Angeles Art Organ Company | orgue neuf | 1930 | Abbott & Sieker | conversion |
- John Wanamaker bought the Louisiana Purchase Exposition organ after the closing of this exhibition. It was played here in a series of fourty concerts by Alexandre Guilmant. The organ was designed by George Ashdown Audsley. The imposing work was then built up in the Grand Court of his Philadelphia department store, where it was first played on June 22, 1911, the day King George was crowned in England. Later, the official commissioning took place at the same time as the opening of the department store, by President Taft. Wanamaker had a workshop set up in the basements of the department store, where forty people led by William B. Fleming devoted themselves to building the organ. The instrument had 140 registers on four manuals when placed.
- Wanamaker, however, had it enlarged in 1914 and 1917, with a fifth manual placed in the last year. In 1923 an extension followed, and in 1930 a sixth manual and a renovation was done by Abbott & Sieker. The instrument now had 451 stops. There were no less than 964 playing aids. The entire organ is playable from a six-keyboard console, and has 10 works and pedal. There are many other details about the organ to report. Many famous organists played the organ, including Marcel Dupré, Louis Vierne, Enrico Bossi and Alfred Hollins.
- In 1982, an action started for the completion of the sixth manual. This manual could only be used to play the four Ancillary Divisions. The intention was to build a high pressure division for this keyboard. The Ancillary Divisions can be played on all six manuals.
Court sommaire des endroits où l'orgue s'est trouvé
| 1904 | Saint Louis, MO | Louisiana Purchase Exposition |
| 1911 | Philadelphia, Pennsylvania | Wanamaker Store |
Données techniques
| Nombre de registres par manuel | |
| - Great Organ | 42 |
| - Swell Organ | 51 |
| - Choir Organ | 19 |
| - Solo Organ | 35 |
| - Ethereal Organ | 20 |
| - Echo Organ | 22 |
| - Orchestral Organ | 38 |
| - String Organ | 80 |
| - Percussion Organ | 9 |
| - Main Pedal Organ | 46 |
| - Ethereal Pedal Organ | 4 |
| - Echo Pedal Organ | 2 |
| - String Pedal Organ | 30 |
| Nombre de jeux total | 398 |
| Transmission des clés | Electrical |
| Transmission des jeux | Electrical |
| Sommier(s) | Slider chests |
Composition
Great Organ (C-c''''): Sub Principal 32', Contra Gamba 16', Double Diapason 16', Sub Quint 10 2/3', Diapason Phonon 8', Diapason Major 8', First Diapason 8', Second Diapason 8', Third Diapason 8', Fourth Diapason 8', Gamba 8' (2 ranks), Major Tibia 8', Mezzo Tibia 8', Minor Tibia 8', Covered Tibia 8', Flute 8', Double Flute 8', Nazard Flute 8' (2 ranks), Harmonic Flute 8', Quint 5 1/3', Harmonic Flute 4', Principal 4', Octave 4', Tierce 3 1/5', Octave Quint 2 2/3', Super Octave 2', Mixture 7 ranks, Double Trumpet 16', Trumpet 8', Harmonic Trumpet 8', Tuba 8', Harmonic Clarion 4', Chorus Diapason Magna 8', Chorus Stentorphone 8', Chorus First Diapason 8', Chorus Second Diapason 8', Chorus Major Flute 8', Chorus Double Flute 8', Chorus Gamba 8', Chorus Flute 4', Chorus Octave 4', Chorus Nazard 2 2/3'.
Swell Organ (C-c''''): Double Diapason 16', Soft Bourdon 16', Stentorphone 8', Horn Diapason 8', Violon Diapason 8', Bell Flute 8', Orchestral Flute 8', Harmonic Flute 8', Grand Flute 8' (2 ranks), Double Flute 8'.
Under expression: Contra Bass 16', Tibia Dura 8', Clarabella 8', Melodia 8', Soft Dulciana 8', Gamba Celeste 8' (2 ranks), Gamba 8', Violoncello 8', Viol 8', Viol 8' - zwevend, Viola 8', Quint Bourdon 5 1/3', Quint Viol 5 1/3', Harmonic Flute 4', First Octave 4', Second Octave 4', Octave Viol 4', Violina 4', Tierce 3 1/5', Nazard 2 2/3', Piccolo 2', Viol Cornet 4 ranks, Mixture 6 ranks, Corroborating Mixture 5 ranks, String Mixture 5 ranks, Bassoon 16', Contra Fagotto 16', Double Oboe Horn 16', Bassoon 8', Trombone 8', First Oboe 8', Fagotto 8', Oboe 8', Trumpet 8', Horn 8', Bassett Horn 8', Clarinet 8' (2 ranks), Clarinet 8', Vox Humana 8' (2 ranks), Harmonic Clarion 4', Musette 4'.
Choir Organ (C-c''''): Double Dulciana 16', Dulciana 8', Open Diapason 8', Violin Diapason 8', Stopped Diapason 8', Concert Flute 8', Salicional 8', Quintadena 8', Vox Angelica 8', Vox Celeste 8', Keraulophone 8', Forest Flute 4', Salicet 4', Piccolo 2', Soft Cornet 6 ranks, Saxophone 16', Saxophone 8', English Horn 8', Clarinet 8'.
Solo Organ (C-c''''): Double Open Diapason 16', Grand Viol 16', First Diapason 8', Second Diapason 8', Third Diapason 8', Violin Diapason 8', Viol 8', Viol 8' - zwevend, Harmonic Flute 8', Tierce Flute 8' (2 ranks), Chimney Flute 8', Clarabella 8', Gemshorn 8', Nazard Gamba 8' (2 ranks), Grand Gamba 8', Grand Gamba 8' - zwevend, Quintaphone 8' (2 ranks), Quint Diapason 5 1/3', Harmonic Flute 4', Octave 4', Harmonic Tierce 3 1/5', Twelfth Harmonic 2 2/3', Piccolo 2', Grand Mixture 6 ranks, Mixture 6 ranks, Mixture 5 ranks, Double Trumpet 16', Tuba 16', Trumpet 8', Soft Tuba 8', Cornopean 8', Ophicleide 8', Musette 8', Ophicleide 4', Tuba 4'.
Ethereal Organ (C-c''''): Bourdon 16', First Open Diapason 8', Second Open Diapason 8', Clear Flute 8', Harmonic Flute 8', Double Flute 8', Quint Flute 8', Grand Gamba 8', Gamba 8' - zwevend, Octave 4', Harmonic Flute 4', Twelfth Harmonic 2 2/3', Harmonic Piccolo 2', Mixture 4 ranks, Tuba Profunda 16', Tuba Mirabilis 8', French Trumpet 8', Grand Clarinet 8', Post Horn 8', Tuba Clarion 4'.
Ancillary Divisions (C-c''''):
Echo Organ: Bourdon 16', Open Diapason 8', Violin Diapason 8', Stopped Diapason 8', Night Horn 8', Clarabella 8', Melodia 8', Orchestral Viol 8' (2 ranks), Soft Viol 8', Soft Viol 8' - zwevend, Unda Maris 8' (2 ranks), Open Quint 5 1/3', Octave 4', Harmonic Flute 4', Mellow Flute 4', Mixture 6 ranks, Cornet Mixture 5 ranks, Double Trumpet 16', Trumpet 8', Capped Oboe 8', Euphone 8', Vox Humana 8' (2 ranks).
Orchestral Organ: Contra Quintadena 16', Duophone 8', Tibia 8', Covered Tibia 8', Concert Flute 8', Harmonic Flute 8', Mellow Flute 8', String Flute 8', Double Flute 8', Hollow Flute 8', Harmonic Flute 4', Orchestral Flute 4', Covered Flute 4', Octave 4', Harmonic Piccolo 2', English Horn 16', Bass Clarinet 16', Bass Saxophone 16', Bassoon 16', English Horn 8', Orchestral Clarinet 8', Saxophone 8', Orchestral Bassoon 8', Oboe 8', Orchestral Oboe 8', First French Horn 8', Second French Horn 8', Third French Horn 8', Kinura 8', Muted Cornet 8', Vox Humana 8', First Vox Humana 8', Second Vox Humana 8', Third Vox Humana 8', Fourth Vox Humana 8', Fifth Vox Humana 8', Sixth Vox Humana 8'.
String Organ: Violone 16', First Contra Gamba 16', Second Contra Gamba 16', First Contra Viol 16', Second Contra Viol 16', First Viol 16', Second Viol 16', Violin Diapason 8', Gamba 8', Nazard Gamba 8' (2 ranks), Nazard Gamba (sharp) 8' (2 ranks), First Cello (natural) 8', First Cello (sharp) 8', First Cello (flat) 8', Second Cello (natural) 8', Second Cello (sharp) 8', Second Cello (flat) 8', First Orchestral Violin (natural) 8', First Orchestral Violin (sharp) 8', First Orchestral Violin (flat) 8', Second Orchestral Violin (natural) 8', Second Orchestral Violin (sharp) 8', Second Orchestral Violin (flat) 8', Third Orchestral Violin (natural) 8', Third Orchestral Violin (sharp) 8', Third Orchestral Violin (flat) 8', Fourth Orchestral Violin (natural) 8', Fourth Orchestral Violin (sharp) 8', Fourth Orchestral Violin (flat) 8', Fifth Orchestral Violin (natural) 8', Fifth Orchestral Violin (sharp) 8', Fifth Orchestral Violin (flat) 8', Sixth Orchestral Violin (natural) 8', Sixth Orchestral Violin (sharp) 8', Sixth Orchestral Violin (flat) 8', First Muted Violin (natural) 8', First Muted Violin (sharp) 8', First Muted Violin (flat) 8', Second Muted Violin (natural) 8', Second Muted Violin (sharp) 8', Second Muted Violin (flat) 8', Third Muted Violin (natural) 8', Third Muted Violin (sharp) 8', Third Muted Violin (flat) 8', Fourth Muted Violin (natural) 8', Fourth Muted Violin (sharp) 8', Fourth Muted Violin (flat) 8', Fifth Muted Violin (natural) 8', Fifth Muted Violin (sharp) 8', Fifth Muted Violin (flat) 8', Sixth Muted Violin (natural) 8', Sixth Muted Violin (sharp) 8', Sixth Muted Violin (flat) 8', First Orchestral Violina (natural) 4', First Orchestral Violina (sharp) 4', Second Orchestral Violina (natural) 4', Second Orchestral Violina (sharp) 4', Quint Violina (natural) 5 1/3', Quint Violina (sharp) 5 1/3', Tierce Violina (natural) 3 1/5', Tierce Violina (sharp) 3 1/5', Nazard Violina (natural) 2 2/3', Nazard Violina (sharp) 2 2/3', Super Violina (natural) 2', Super Violina (sharp) 2', First Dulciana (natural) 8', First Dulciana (sharp) 8', Second Dulciana (natural) 8', Second Dulciana (sharp) 8', Third Dulciana (natural) 8', Third Dulciana (sharp) 8', Fourth Dulciana (natural) 8', Fourth Dulciana (sharp) 8', Fifth Dulciana (natural) 8', Fifth Dulciana (sharp) 8', Sixth Dulciana (natural) 8', Sixth Dulciana (sharp) 8', First Octave Dulciana (natural) 4', First Octave Dulciana (sharp) 4', Second Octave Dulciana (natural) 4', Second Octave Dulciana (sharp) 4', Dulciana Mutation 5 ranks.
Percussion Organ: Major Chimes (c - c'' (37 tubular chimes)), Minor Chimes (G - g' (25 tubular chimes)), Metalophone (c - c''' (49 metal bars)), Celeste (c - c''' (49 metal bars)), Piano I, Piano II (88 tonen echte piano), Harp I, Harp II, Gongs (c - c''' (49 metal bars)).
Percussion Organ (C-g'):
Main Pedal Organ: Gravissima 64' - akoestisch, Contra Diaphone 32', First Contra Open Diapason 32', Second Contra Open Diapason 32', Contra Bourdon 32', Diaphone 16', First Open Diapason 16', Second Open Diapason 16', Third Open Diapason 16', Bourdon 16', Soft Bourdon 16', Open Flute 16', Violone 16', Gamba 16', Dulciana 16', Open Quint 10 2/3', Stopped Quint 10 2/3', Open Diapason 8', Octave Soft Bourdon 8', Soft Flute 8', Soft Dulciana 8', Stentorphone 8', Octave 8', First Tibia 8', Second Tibia 8', First Cello 8', Second Cello 8', Soft Flute 4', First Tibia 4', Second Tibia 4', Principal 4', Octave 4', Grand Mutation 10 ranks, Mixture 7 ranks, Mixture 8 ranks (32'), Mixture 8 ranks (16'), Contra Bombarde 32', Bombarde 16', Trombone 16', Tuba 16', Euphonium 16', Contra Fagotto 16', Bombarde 8', Octave Fagotto 8', Tromba 8', Clarion 4'.
Ethereal Pedal Organ: Acoustic Bass 32', Diapason 16', Bombarde 16', Bombarde 8'.
Echo Pedal Organ: Open Diapason 16', Stopped Diapason 16'.
String Pedal Organ: Contra Diaphone 32', Contra Gamba 32', Diaphone 16', String Diaphone 16', Mutated Diaphone 16', Gamba 16', First Violone 16', Second Violine 16', Viol 16', Viol 16' - zwevend, Mutated Viol 16', Mutated Viol 10 2/3', Diaphone 8', Gamba 8', First Violone 8', Second Violone 8', Viol 8', Viol 8' - zwevend, Mutated Viol 8', Mutated Viol 5 1/3', Violone 4', Mutated Viol 4', Mutated Viol 2 2/3', Mutated Viol 2', Mutated Viol 1 3/5', Mutated Viol 1 1/3', Mutated Viol 4/5', Mixture 12 ranks (32'), First Vox Humana 16', Second Vox Humana 16'.
Accouplements: Manual II - Manual I, Chorus - Manual I, Manual III - Manual I, Manual IV - Manual I, Manual V - Manual I, Manual VI - Manual I, Echo - Manual I, Orchestral - Manual I, Orchestral Labiale - Manual I, String - Manual I, String Cellos - Manual I, Percussion - Manual I, Manual I - Manual II, Manual III - Manual II, Manual IV - Manual II, Manual V - Manual II, Manual VI - Manual II, Echo - Manual II, Orchestral - Manual II, Orchestral Labiale - Manual II, String - Manual II, String Cellos - Manual II, Percussion - Manual II, Pedal - Manual II, Manual IV - Manual III, Manual V - Manual III, Manual VI - Manual III, Echo - Manual III, Orchestral - Manual III, String - Manual III, Percussion - Manual III, Manual V - Manual IV, Manual VI - Manual IV, Echo - Manual IV, Orchestral - Manual IV, String - Manual IV, Percussion - Manual IV, Manual IV - Manual V, Echo - Manual V, Orchestral - Manual V, String - Manual V, Chorus - Manual VI, Echo - Manual VI, Orchestral - Manual VI, String - Manual VI, Percussion - Manual VI, Manual I - Pedal, Manual II - Pedal, Manual III - Pedal, Manual IV - Pedal, Manual V - Pedal, Manual VI - Pedal, Echo - Pedal, String - Pedal, Percussion – Pedal, Manual I 16', Manual II - Manual I 16', Manual III - Manual I 16', Manual IV - Manual I 16', Manual V - Manual I 16', Manual VI - Manual I 16', Manual II 16', Chorus - Manual II 16', Manual I - Manual II 16', Manual III - Manual II 16', Manual IV - Manual II 16', Manual V - Manual II 16', Manual VI - Manual II 16', Manual III 16', Manual IV - Manual III 16', Manual V - Manual III 16', Manual VI - Manual III 16', Manual IV 16', Manual V - Manual IV 16', Manual VI - Manual IV 16', Manual V 16', Manual VI - Manual V 16', Manual VI 16', Echo 16', Orchestral 16', String 16', Manual I 4', Manual II - Manual I 4', Manual III - Manual I 4', Manual IV - Manual I 4', Manual V - Manual I 4', Manual VI - Manual I 4', Manual II 4', Chorus - Manual II 4', Manual I - Manual II 4', Manual III - Manual II 4', Manual IV - Manual II 4', Manual V - Manual II 4', Manual VI - Manual II 4', Manual III 4', Manual IV - Manual III 4', Manual V - Manual III 4', Manual VI - Manual III 4', Manual IV 4', Manual V - Manual IV 4', Manual VI - Manual IV 4', Manual V 4', Manual VI - Manual V 4', Manual VI 4', Echo 4', Orchestral 4', String 4', Manual I Unison Off, Manual II Unison Off, Chorus Unison Off, Manual III Unison Off, Manual IV Unison Off, Manual V Unison Off, Manual VI Unison Off, Echo Unison Off, Orchestral Unison Off, String Unison Off.
Jouer conseils: String Cellos silent, String Violins silent, String Mutations off, Pedal Divided, 46 General Setzer Combinations 4', Setzer Combinations for each division, Suboctavecouplers off, Superoctavecouplers off, 3 Tutti Combinations 3', Registercrescendo.
| Références |
|
| Enregistrements |
|
| Lièns |
http://www.wanamakerorgan.com/ |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
