Description complète d'orgue sélectionné
Photo: Piet Bron

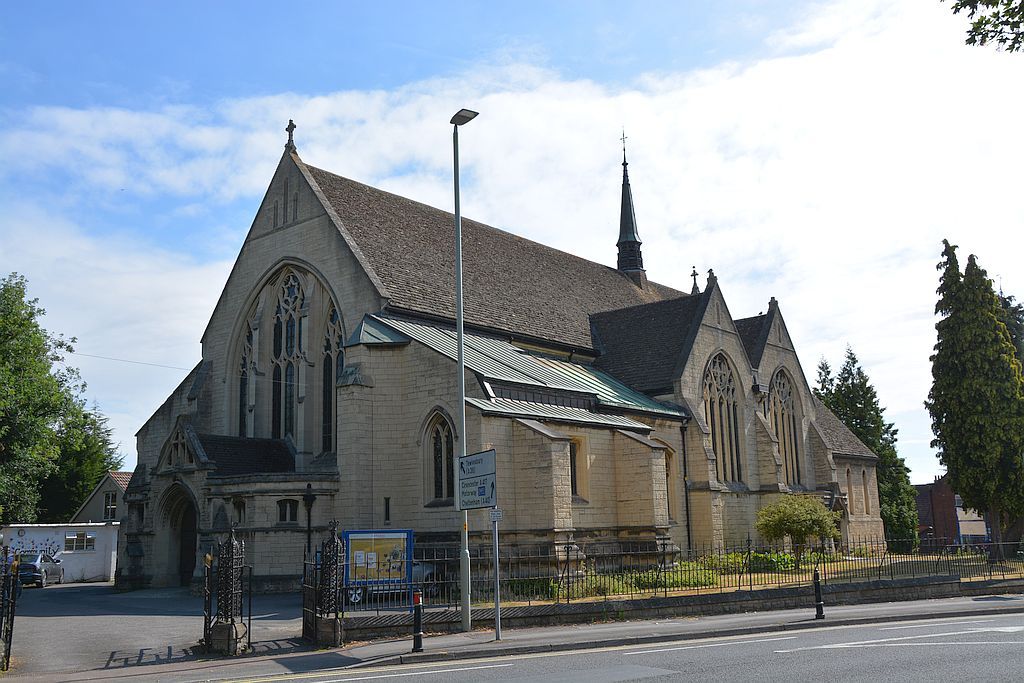

Gloucester, United Kingdom (Gloucestershire) - Church of Saint Catherine (Wotton)
Commune: Gloucester
Adresse: London Road, GL2 0RR, Gloucester
Site Web: http://www.stcatharine.org.uk/
Description no.: 2059961.
Bâti par: J.W. Walker & Sons (1915)
Données techniques
Composition
Great Organ (C-a'''): Double Dulciana 16', Open Diapason 8', Dulciana 8', Waldflöte 8', Principal 4', Flute 4', Fifteenth 2', Sesquialtera 2 ranks (2 2/3'), Mixture 4 ranks (1').
Swell Organ (C-a'''): Open Diapason 8', Stopped Diapason 8', Gamba 8', Gemshorn 4', Twelfth 2 2/3', Fifteenth 2', Bassoon 16', Trumpet 8', Clarion 4', Tremolo.
Pedal Organ (C-f'): Open Diapason 16', Bourdon 16', Dulciana 16' - extension from Great, Principal 8', Flute 8', Quint 5 1/3', Fifteenth 4', Bassoon 16' - from Swell.

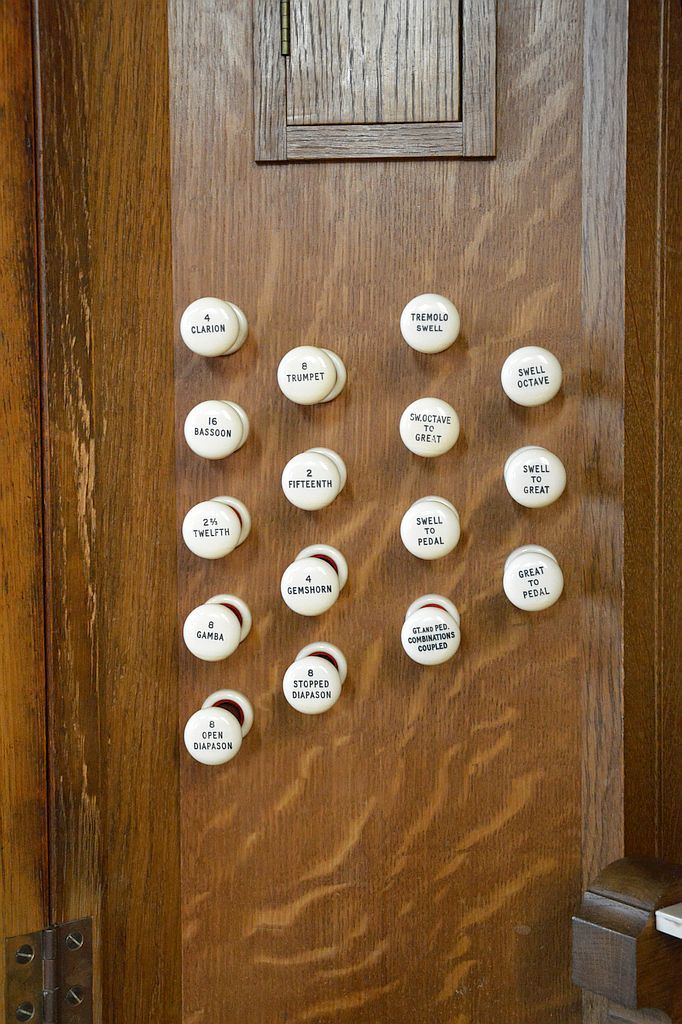

Accouplements: Swell to Great, Swell Octave to Great, Great to Pedal, Swell to Pedal, Swell Octave, Great and Pedal Combinations Coupled.
Photo: Piet Bron
Gloucester, United Kingdom (Gloucestershire) - Church of Saint Catherine (Wotton)
Commune: Gloucester
Adresse: London Road, GL2 0RR, Gloucester
Site Web: http://www.stcatharine.org.uk/
Description no.: 2059961.
Bâti par: J.W. Walker & Sons (1915)
Année | Facteur | Opus | Activité | 1915 | J.W. Walker & Sons | orgue neuf | 1952 | Roger Yates | restauration et expansion | 1965 | Roger Yates | restauration et expansion |
Données techniques
Nombre de registres par manuel | |
- Great Organ | 9 |
- Swell Organ | 9 |
- Pedal Organ | 8 (6) |
Nombre de jeux total | 26 (24) |
Transmission des clés | Mechanical |
Transmission des jeux | Mechanical |
Sommier(s) | Slider chests |
Composition
Great Organ (C-a'''): Double Dulciana 16', Open Diapason 8', Dulciana 8', Waldflöte 8', Principal 4', Flute 4', Fifteenth 2', Sesquialtera 2 ranks (2 2/3'), Mixture 4 ranks (1').
Swell Organ (C-a'''): Open Diapason 8', Stopped Diapason 8', Gamba 8', Gemshorn 4', Twelfth 2 2/3', Fifteenth 2', Bassoon 16', Trumpet 8', Clarion 4', Tremolo.
Pedal Organ (C-f'): Open Diapason 16', Bourdon 16', Dulciana 16' - extension from Great, Principal 8', Flute 8', Quint 5 1/3', Fifteenth 4', Bassoon 16' - from Swell.
Accouplements: Swell to Great, Swell Octave to Great, Great to Pedal, Swell to Pedal, Swell Octave, Great and Pedal Combinations Coupled.
