Description complète d'orgue sélectionné

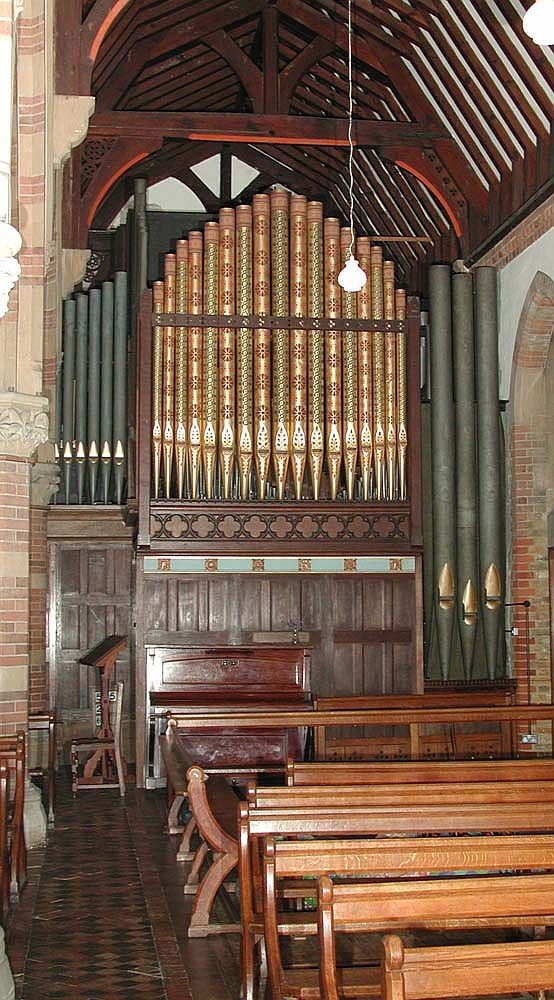

Photo: John Salmon
Uxbridge, United Kingdom (Greater London) - Church of Saint Andrew
Commune: London
Adresse: Hillingdon Road, Uxbridge
Description no.: 2027873.
Bâti par: Alphonse Noterman (1978)
Orgel van Noterman uit 1978. Het is geheel herbouw door B.C.Shepherd in 1999 en 2000. Daarbij is een nieuwe electro-pneumatische tractuur aangelegd.
Données techniques
Composition
Great Organ (C-g'''): Double Diapason 16', Open Diapason 8', Flute Pavillion 8', Gedeckt 8', Principal 4', Harmonic Flute 4', Fifteenth 2', Mixture 3 ranks (12.19.22), Trumpet 8'.
Choir Organ (C-g'''): Stopped Diapason 8', Gemshorn 4', Rohr Flute 4', Nazard 2 2/3', Fifteenth 2', Block Fllute 2', Tierce 1 3/5', Mixture 2 ranks (22.26), Clarionet 8', Swell Oboe 8' - from Swell Organ, Tremulant, Solo Trumpet 8'.
Swell Organ (C-g'''): Double Diapason 16', Open Diapason 8', Stopped Diapason 8', Salicional 8', Voix Celeste 8' (TC), Principal 4', Fifteenth 2', Mixture 2 ranks (19.22), Contra Fagotto 16', Cornopean 8', Oboe 8' - extension, Clarion 4', Tremulant.
Pedal Organ (C-f'): Open Diapason 16', Violone 16', Bourdon 16', Quint 10 2/3' - extension, Octave 8' - extension, Principal 8' - extension, Bass Flute 8' - extension, Fifteenth 4' - extension, Octave Flute 4' - extension, Twenty Second 2' - extension, Bombardon 16', Fagotto 16' - transmission from Swell, Oboe 8' - extension from Swell, Oboe 4' - extension from Swell.
Accouplements: Choir to Great, Swell to Great, Swell to Choir, Great to Pedal, Choir to Pedal, Swell to Pedal, Choir Octave, Swell Octave, Swell Suboctave.
Photo: John Salmon
Uxbridge, United Kingdom (Greater London) - Church of Saint Andrew
Commune: London
Adresse: Hillingdon Road, Uxbridge
Description no.: 2027873.
Bâti par: Alphonse Noterman (1978)
Année | Facteur | Opus | Activité | 1978 | Alphonse Noterman | orgue neuf | 2000 | B.C. Shepherd & Son | conversion |
Orgel van Noterman uit 1978. Het is geheel herbouw door B.C.Shepherd in 1999 en 2000. Daarbij is een nieuwe electro-pneumatische tractuur aangelegd.
Données techniques
Nombre de registres par manuel | |
- Great Organ | 9 |
- Choir Organ | 11 (10) |
- Swell Organ | 12 (11) |
- Pedal Organ | 14 (4) |
Nombre de jeux total | 46 (34) |
Transmission des clés | Electropneumatic |
Transmission des jeux | Electropneumatic |
Sommier(s) | Cone chests |
Composition
Great Organ (C-g'''): Double Diapason 16', Open Diapason 8', Flute Pavillion 8', Gedeckt 8', Principal 4', Harmonic Flute 4', Fifteenth 2', Mixture 3 ranks (12.19.22), Trumpet 8'.
Choir Organ (C-g'''): Stopped Diapason 8', Gemshorn 4', Rohr Flute 4', Nazard 2 2/3', Fifteenth 2', Block Fllute 2', Tierce 1 3/5', Mixture 2 ranks (22.26), Clarionet 8', Swell Oboe 8' - from Swell Organ, Tremulant, Solo Trumpet 8'.
Swell Organ (C-g'''): Double Diapason 16', Open Diapason 8', Stopped Diapason 8', Salicional 8', Voix Celeste 8' (TC), Principal 4', Fifteenth 2', Mixture 2 ranks (19.22), Contra Fagotto 16', Cornopean 8', Oboe 8' - extension, Clarion 4', Tremulant.
Pedal Organ (C-f'): Open Diapason 16', Violone 16', Bourdon 16', Quint 10 2/3' - extension, Octave 8' - extension, Principal 8' - extension, Bass Flute 8' - extension, Fifteenth 4' - extension, Octave Flute 4' - extension, Twenty Second 2' - extension, Bombardon 16', Fagotto 16' - transmission from Swell, Oboe 8' - extension from Swell, Oboe 4' - extension from Swell.
Accouplements: Choir to Great, Swell to Great, Swell to Choir, Great to Pedal, Choir to Pedal, Swell to Pedal, Choir Octave, Swell Octave, Swell Suboctave.
|
