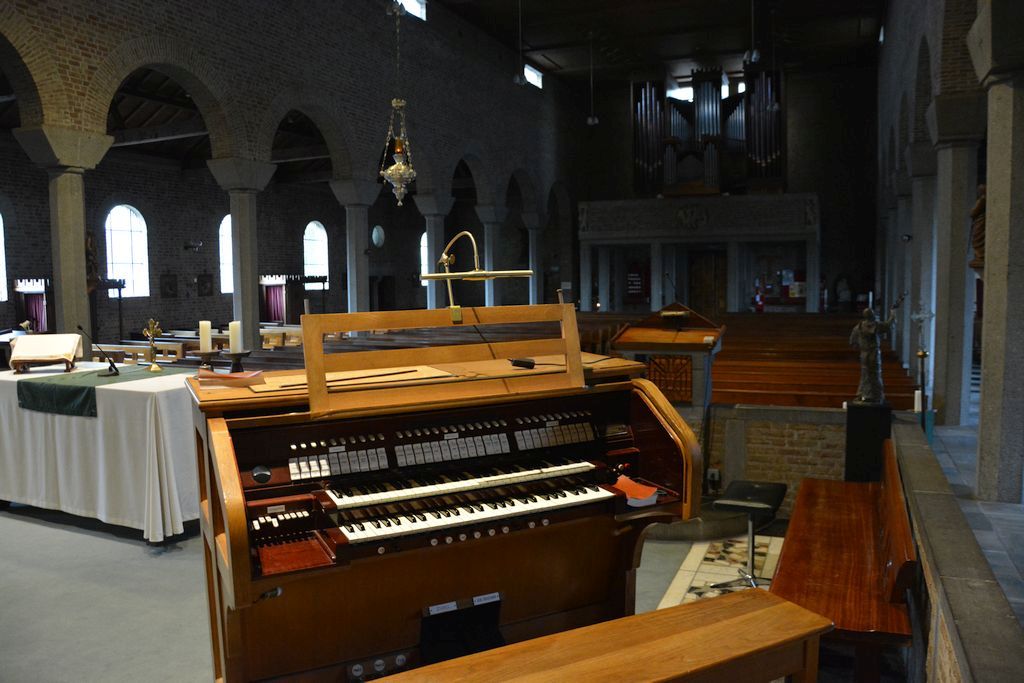

Photo: Piet Bron
Kerkdriel, Nederland (Gelderland) - Sint Martinuskerk, koororgel
Commune: Maasdriel
Région:Bommelerwaard
Adresse: Kerkstraat 26, 5331 CE, Kerkdriel
Site Web: https://www.katholiekbommelerwaard.nl/
Description no.: 1004905.
Bâti par: Valckx & Van Kouteren (1926)
The choir organ of the Martinuskerk in Kerkdriel was acquired from the psychiatric institution 'Voorburgh' in Vught. The organ was built in 1926 for the chapel of this institute by the company Valckx & Van Kouteren. It was transferred to Kerkdriel in 1986/1987 by F. Bernouw. A number of ranks were missing. Maybe they were only planned for installation, but have never been installed.
Court sommaire des endroits où l'orgue s'est trouvé
Données techniques
Composition
Manuaal I (C-g'''): Bourdon 16', Prestant 8', Roerfluit 8', Salicionaal 8', Octaaf 4', Fluit 4', Quint 2 2/3', Octaaf 2', Mixtuur V sterk (1 1/3'), Trompet 8'.
Manuaal II (in zwelkast) (C-g'''): Prestant 8', Holpijp 8', Gamba 8', Prestant 4', Gedekte Fluit 4', Prestant 2', Sesquialter II sterk, Scherp III sterk, Basson Hobo 8', Tremolo.
Pedaal (C-f'): Violon 16', Subbas 16', Octaafbas 8', Gemshoorn 8', Gedektbas 8', Octaaf 4', Mixtuur III sterk (2 2/3').
Accouplements: Manuaal I - Manuaal II, Manuaal I - Manuaal II 16', Manuaal I - Manuaal II 4', Pedaal - Manuaal I, Pedaal - Manuaal II, Pedaal - Manuaal II 4'.
Jouer conseils: 1 vrije combinatie, 6 vaste combinaties (pp - p - mf - f - ff - tutti), Generaal Crescendo, Automatische pedaalomschakeling (vrij instelbaar).
Autres sources
Photo: Piet Bron
Kerkdriel, Nederland (Gelderland) - Sint Martinuskerk, koororgel
Commune: Maasdriel
Région:Bommelerwaard
Adresse: Kerkstraat 26, 5331 CE, Kerkdriel
Site Web: https://www.katholiekbommelerwaard.nl/
Description no.: 1004905.
Bâti par: Valckx & Van Kouteren (1926)
| Année | Facteur | Opus | Activité | 1926 | Valckx & Van Kouteren | orgue neuf | 1987 | F. Bernouw | transfer |

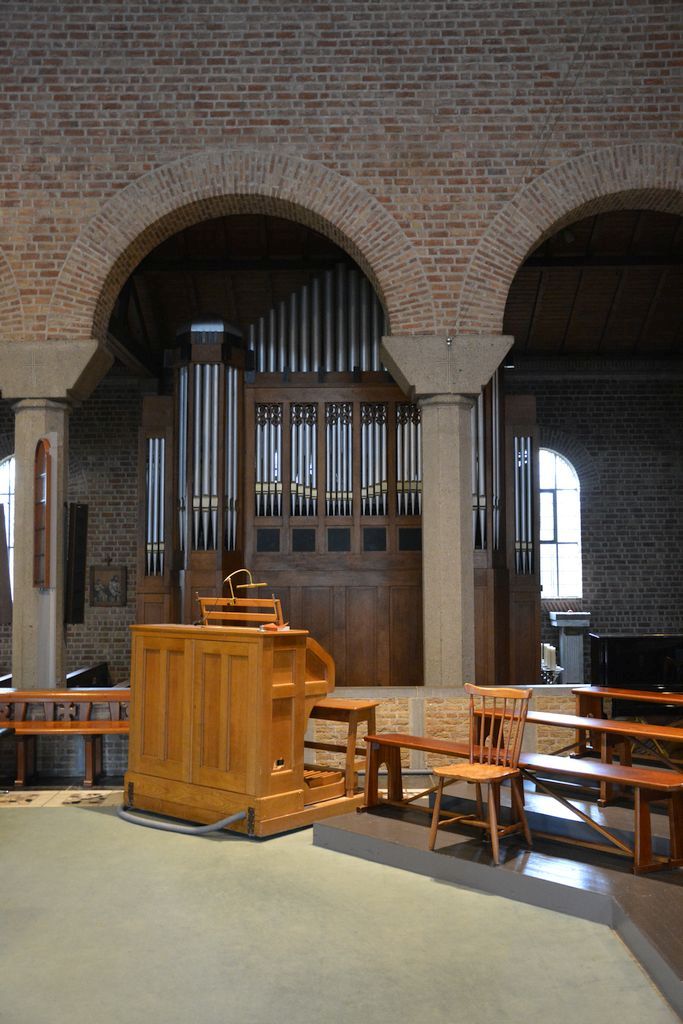

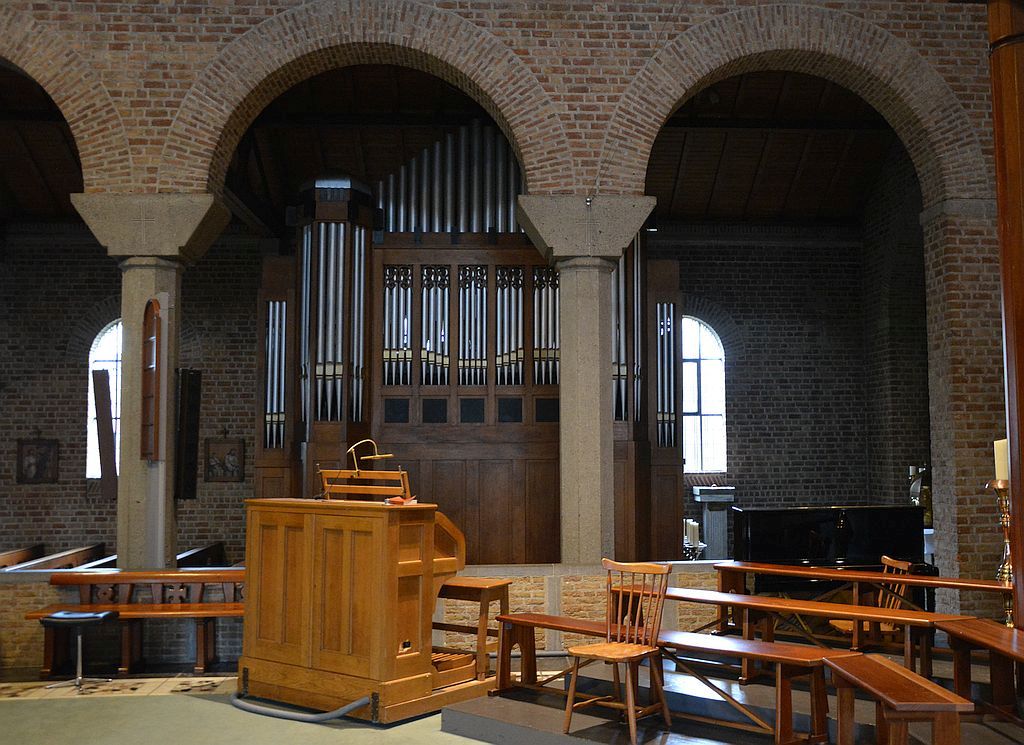

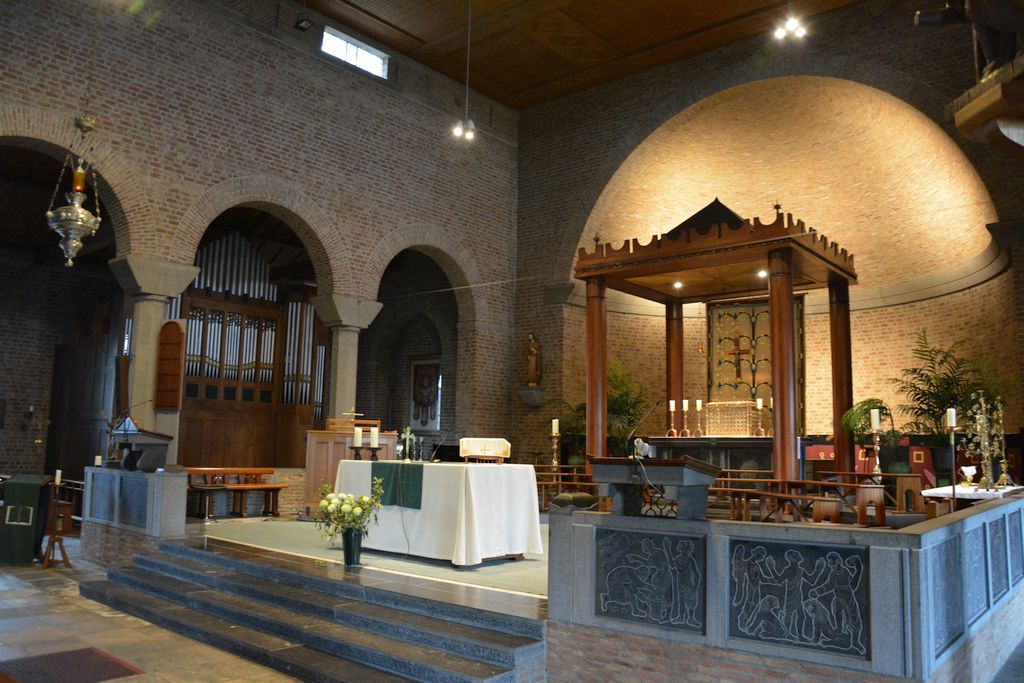

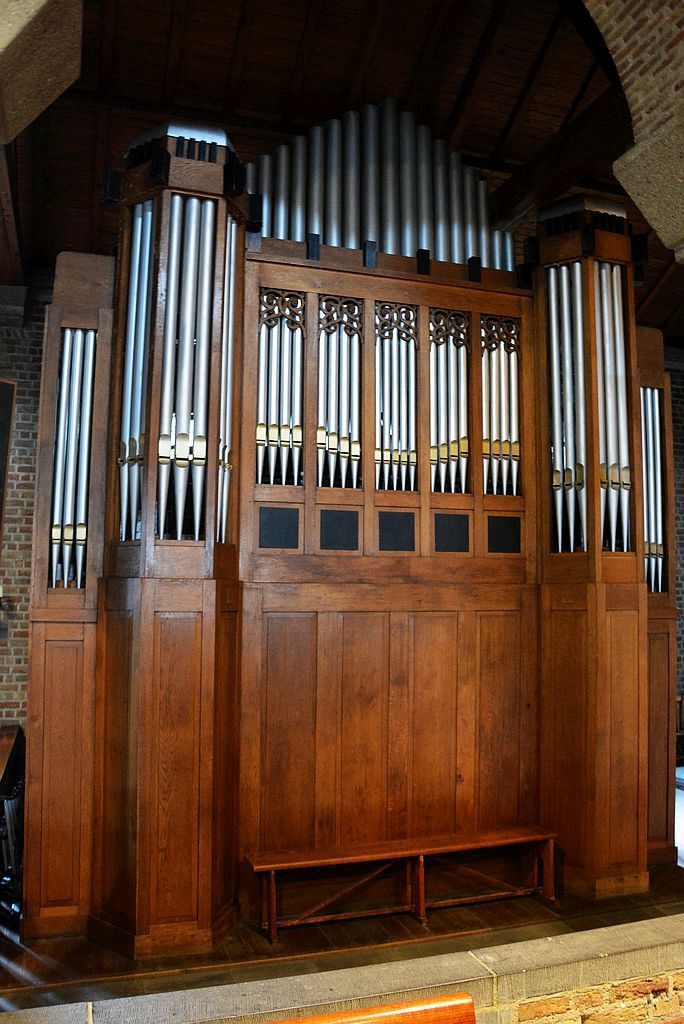

The choir organ of the Martinuskerk in Kerkdriel was acquired from the psychiatric institution 'Voorburgh' in Vught. The organ was built in 1926 for the chapel of this institute by the company Valckx & Van Kouteren. It was transferred to Kerkdriel in 1986/1987 by F. Bernouw. A number of ranks were missing. Maybe they were only planned for installation, but have never been installed.
Court sommaire des endroits où l'orgue s'est trouvé

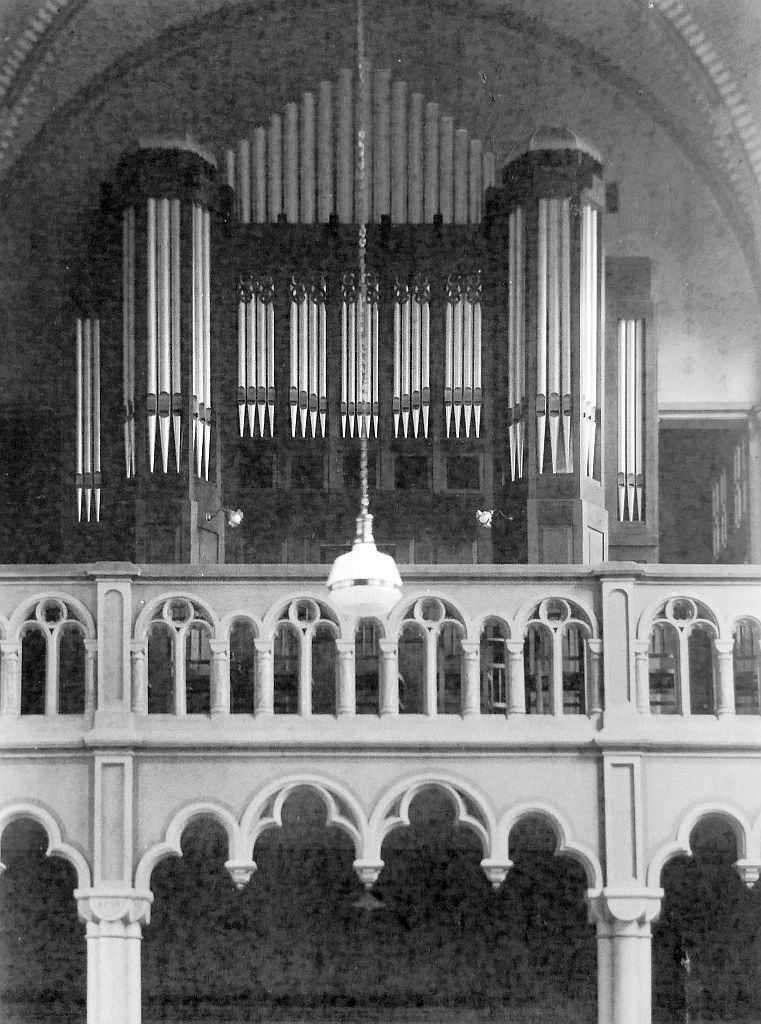

| 1926 | Vught | Kapel Psychiatrische Inrichting Voorburgh |
| 1987 | Kerkdriel | Sint Martinuskerk, koororgel |
Données techniques
| Nombre de registres par manuel | |
| - Manuaal I | 10 |
| - Manuaal II | 9 |
| - Pedaal | 7 |
| Nombre de jeux total | 26 |
| Transmission des clés | Electropneumatic |
| Transmission des jeux | Electropneumatic |
| Sommier(s) | Cone chests |
Composition

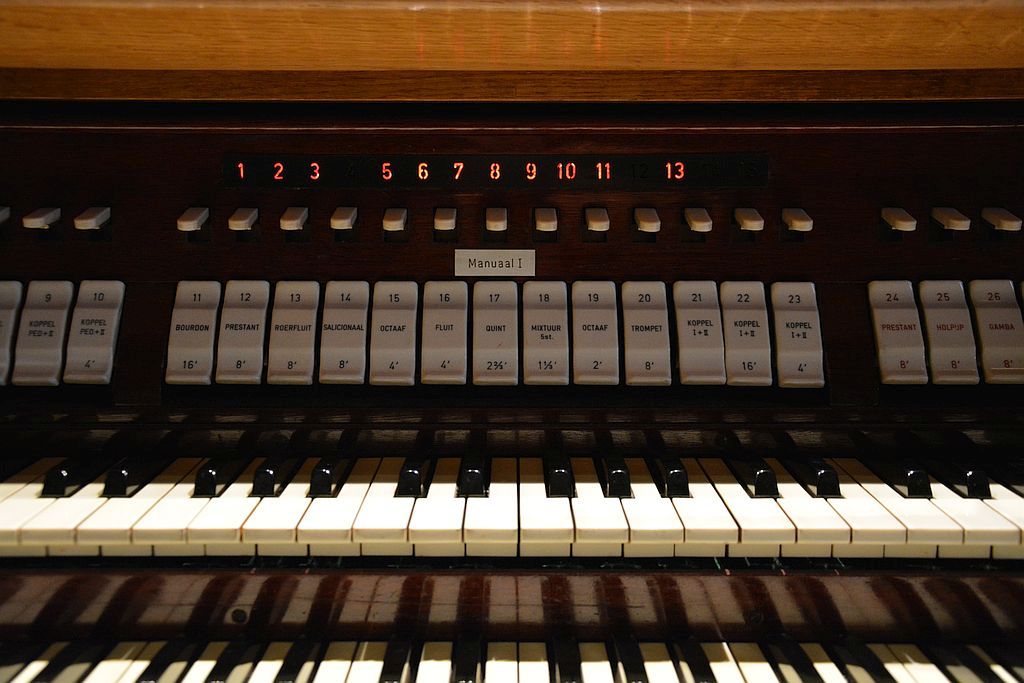

Manuaal I (C-g'''): Bourdon 16', Prestant 8', Roerfluit 8', Salicionaal 8', Octaaf 4', Fluit 4', Quint 2 2/3', Octaaf 2', Mixtuur V sterk (1 1/3'), Trompet 8'.

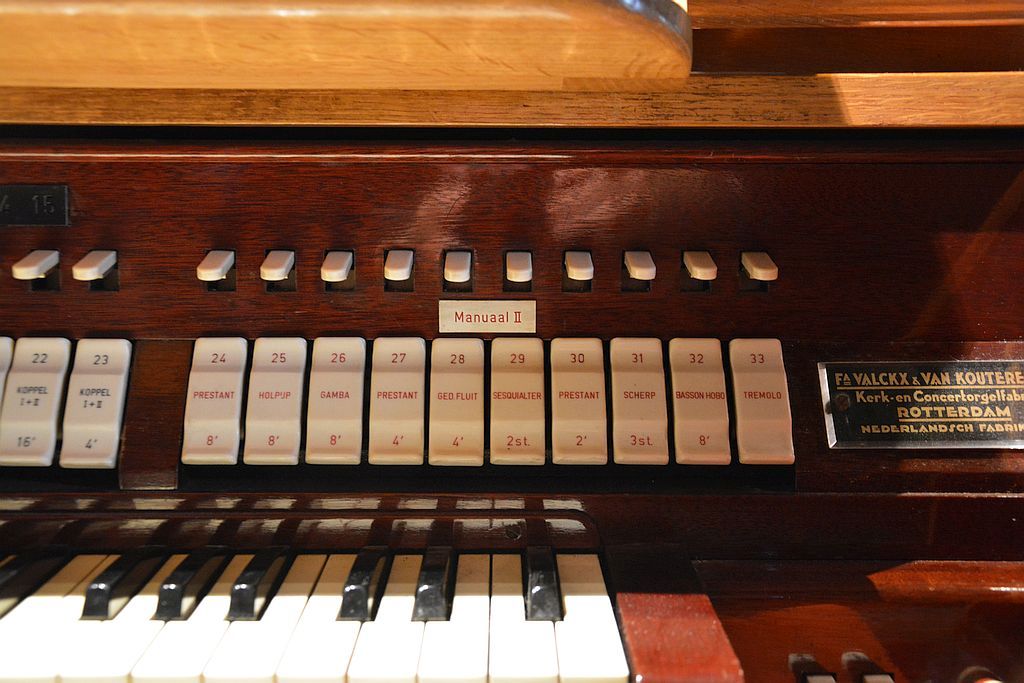

Manuaal II (in zwelkast) (C-g'''): Prestant 8', Holpijp 8', Gamba 8', Prestant 4', Gedekte Fluit 4', Prestant 2', Sesquialter II sterk, Scherp III sterk, Basson Hobo 8', Tremolo.

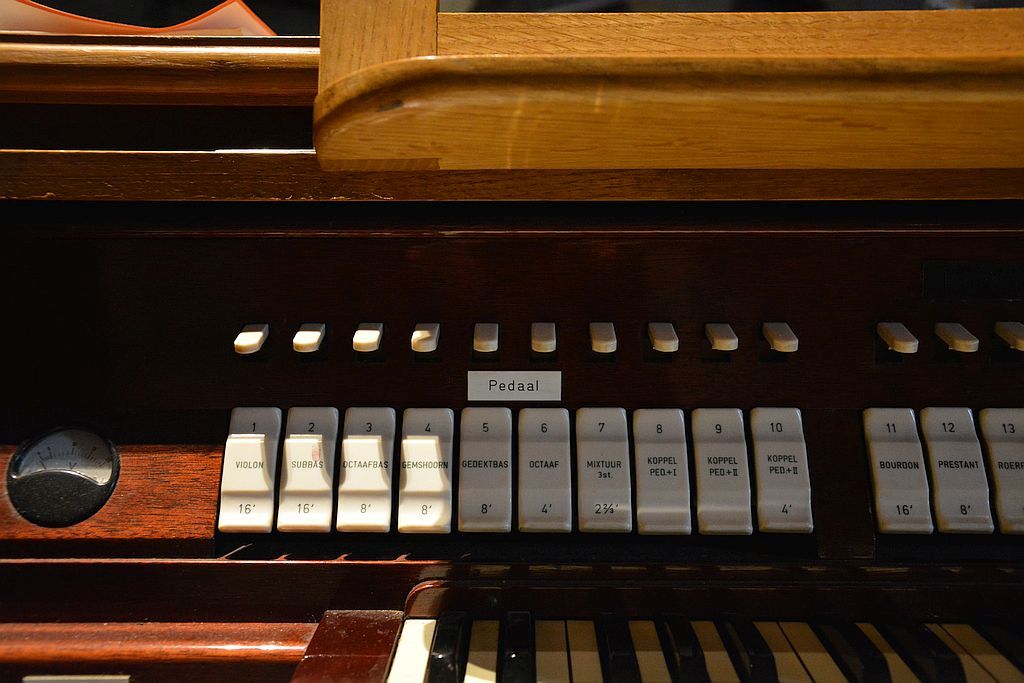

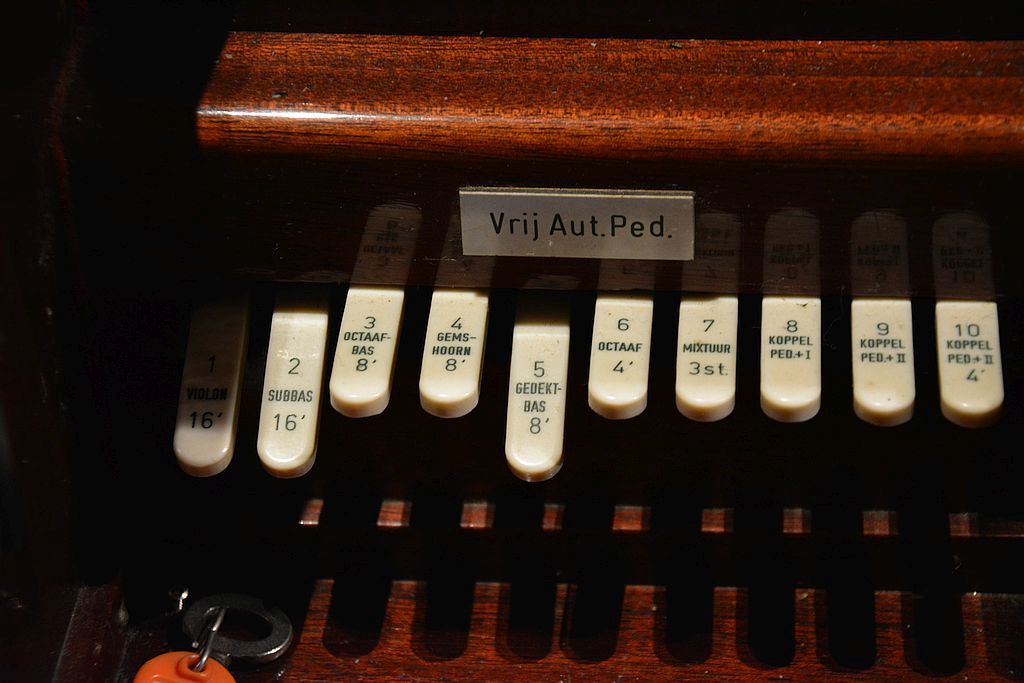

Pedaal (C-f'): Violon 16', Subbas 16', Octaafbas 8', Gemshoorn 8', Gedektbas 8', Octaaf 4', Mixtuur III sterk (2 2/3').
Accouplements: Manuaal I - Manuaal II, Manuaal I - Manuaal II 16', Manuaal I - Manuaal II 4', Pedaal - Manuaal I, Pedaal - Manuaal II, Pedaal - Manuaal II 4'.

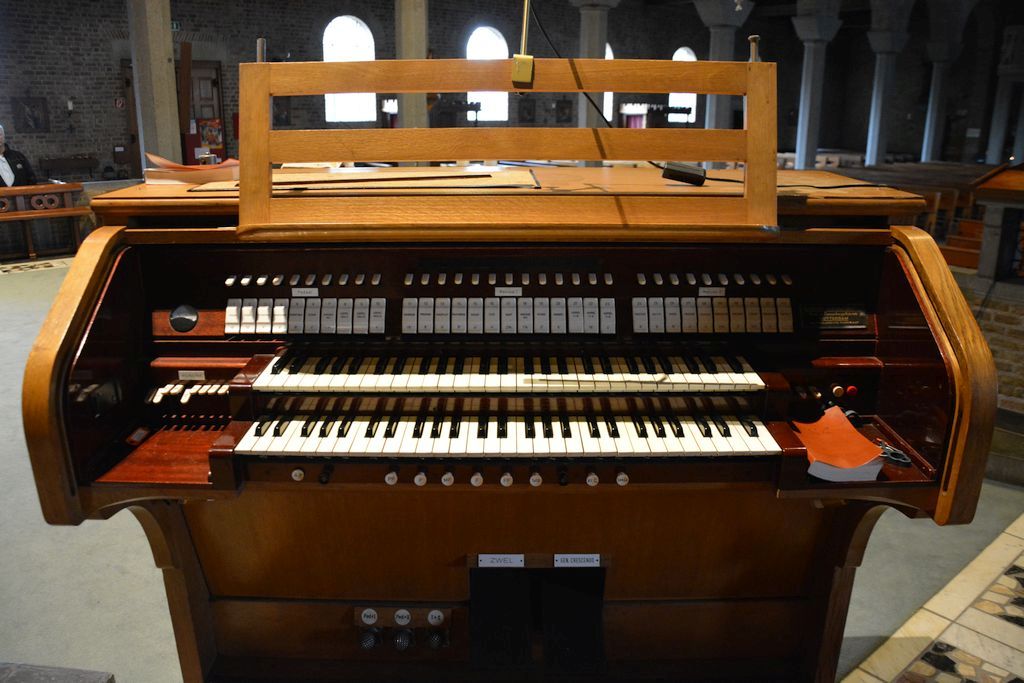

Jouer conseils: 1 vrije combinatie, 6 vaste combinaties (pp - p - mf - f - ff - tutti), Generaal Crescendo, Automatische pedaalomschakeling (vrij instelbaar).
| Références |
Nieuwe en Herstelde Orgels. - In: Het Orgel, 23 Jaargang No. 11, Augustus 1926. |
- Anton Bogaarts
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
